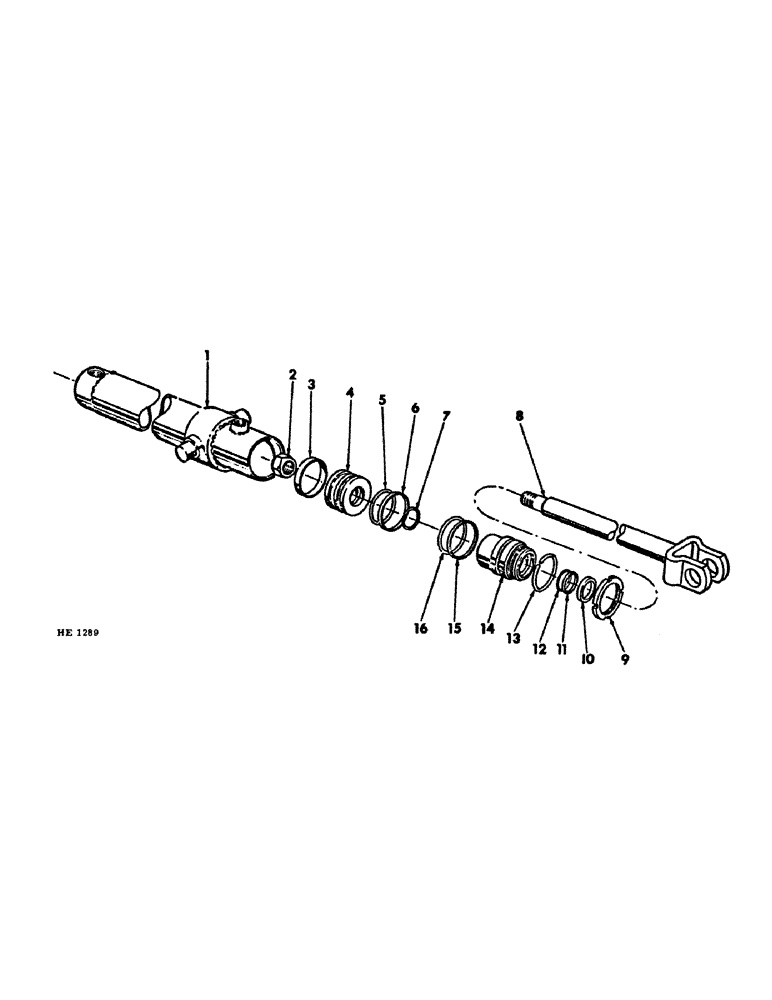

Запчасти Case IH 1550 (B-22) - BUCKET CONTROL HYDRAULIC CYLINDER

675294R92

CYLINDER, bucket control hyd (composed of all parts listed below)

1шт.

1

675372R91

PIPE, bucket control hyd cyl

1шт.

2

9413974

LOCK NUT,7/8"-14, GB

NUT, hyd cyl piston rod

1шт.

3

RING, hyd cyl piston wear (for service order 1-85346C91, package) (NSS)

1шт.

4

850345C1

PISTON

hyd cyl

1шт.

5

O-RING, 3/22 x 2-3/16" hyd cyl piston (for service order 1-850346C91, package) (NSS)

1шт.

6

RING, 2-1/2" O.D. teflon piston (for service order 1-850346C91, package) (NSS)

1шт.

7

O-RING, 1/8 x 1-1/4" I.D. piston rod (for service order 1-850348C91, package) (NSS)

1шт.

8

675373R1

ROD, hyd cyl piston

1шт.

9

675376R1

NUT

hyd cyl front head

1шт.

10

SEAL, hyd cyl front head (for service order 1-850346C91, package) (NSS)

1шт.

11

WASHER, 1/8 x 1-1/4" I.D. rubber backup (for service order 1-850346C91, package) (NSS)

1шт.

12

O-RING, 1/8 x 1-1/4" I.D. piston rod front head (for service order 1-850346C91, package) (NSS)

1шт.

13

RING, hyd cyl front head lk (for service order 1-85-346C91, package) (NSS)

1шт.

14

675375R1

HEAD

hyd cyl front

1шт.

15

WASHER, 1/8 x 2-1/4" I.D. rubber backup front head (for service order 1-85-346C91, package) (NSS)

1шт.

16

O-RING, 1/8 x 2-1/4" I.D. hyd cyl front head (for service order 1-850346C91, package) (NSS)

1шт.

850346C91

PACKAGE

bucket control hyd cyl seal service composed of (1) ring (NSS), (1) ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) o-ring (NSS), (1) o-ring (NSS), (1) o-ring (NSS), (1) o-ring (NSS), (1) washer (NSS), (1) washer (NSS)

1шт.
