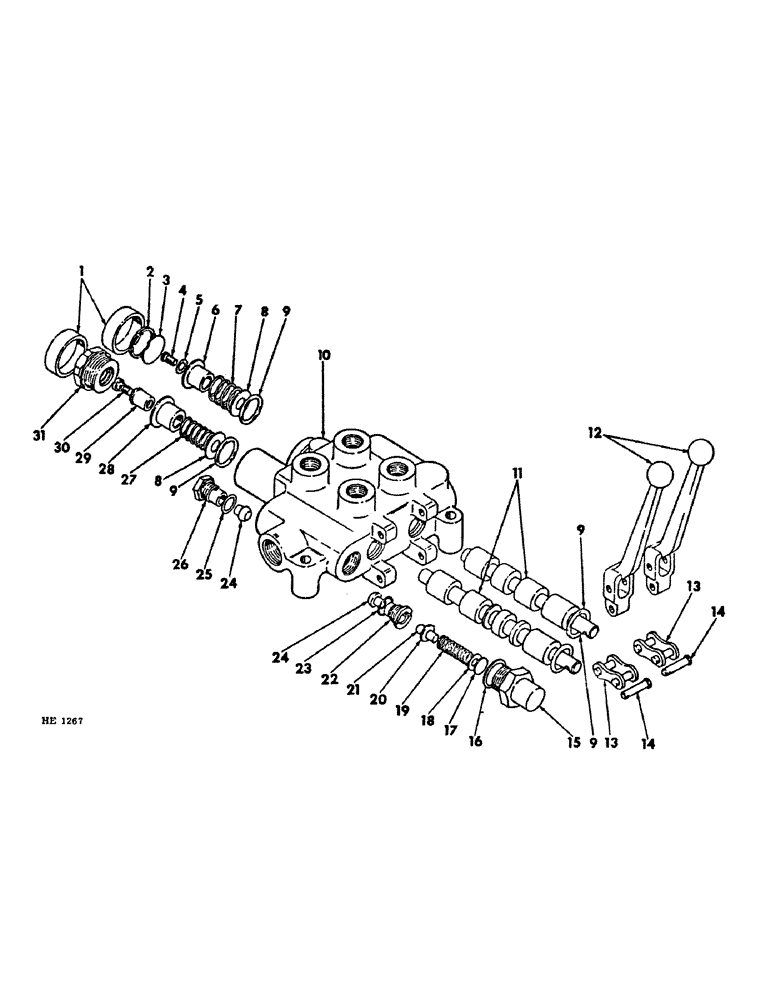

Запчасти Case IH 1550 (B-20) - HYDRAULIC CONTROL VALVE
№
Артикул
Название
Примечание
Количество
851629C91
VALVE
hyd control (composed of all parts listed below unless otherwise noted)
1шт.
180132
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
3/8 x 2-1/4" (NPVA)
3шт.
(+) Not part of valve assy
1шт.
120377
NUT,3/8" - 16, Gr 5
(NPVA) 3/8"-16, G5
3шт.
(+) Not part of valve assy
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, (NPVA) 3/8"
3шт.
(+) Not part of valve assy
1шт.
1
663034R1
CYLINDER END CAP
CAP, bonnet
2шт.
2
663025R1
OIL SEAL
RING, end cap retaining
1шт.
3
663023R1
CAP
end
1шт.
4
85700996
SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"
1/4 x 1/2" slt-rd-hd mach
1шт.
5
174878
WASHER
1/4" int-t-hv-lk
1шт.
6
663022R1
COLLAR
spg
1шт.
7
851630C1
SPRING
centering
1шт.
8
149372R1
WASHER
stop
2шт.
9
663032R1
O-RING
SEAL, control valve spool
4шт.
10
HOUSING, control valve (for service order 1-851629C91, valve) (NSS)
1шт.
11
SPOOL, valve 4 way float (for service order 1-851629C91, valve) (NSS)
2шт.
12
380366R1
HANDLE
control valve
2шт.
13
635714R91
LINK
control handle
2шт.
187357
C-PIN, 1/16 x 1-1/2"
2шт.
14
Q711
HEADED PIN,1/4" x 1 1/4"
PIN, control handle
2шт.
19454R1
PIN
C-PIN, 5/64 x 7/16"
2шт.
15
380363R1
FITTING
BODY, relief valve
1шт.
16
663029R1
GASKET
relief valve body
1шт.
17
380365R1
SHIM
relief spg
1шт.
18
635788R1
WASHER
SPACER, relief spg
1шт.
19
478481R1
SPRING
relief
1шт.
20
387135R1
GUIDE
relief spg
1шт.
21
16014R1
BALL
7/16" dia steel
1шт.
22
380362R1
SEAT
relief valve
1шт.
24
666719R1
VALVE POPPET
BALL, 5/8" dia relief check
2шт.
25
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
check ball plug
1шт.
26
666722R1
PLUG
check ball
1шт.
27
851456C1
SPRING
centering
1шт.
28
635966R1
COLLAR
spring
1шт.
29
851457C1
PLUNGER
detent
1шт.
30
893081C1
SCREW, detent
1шт.
31
394005C1
DETENT, control valve
1шт.
Выбрано товаров: 40
