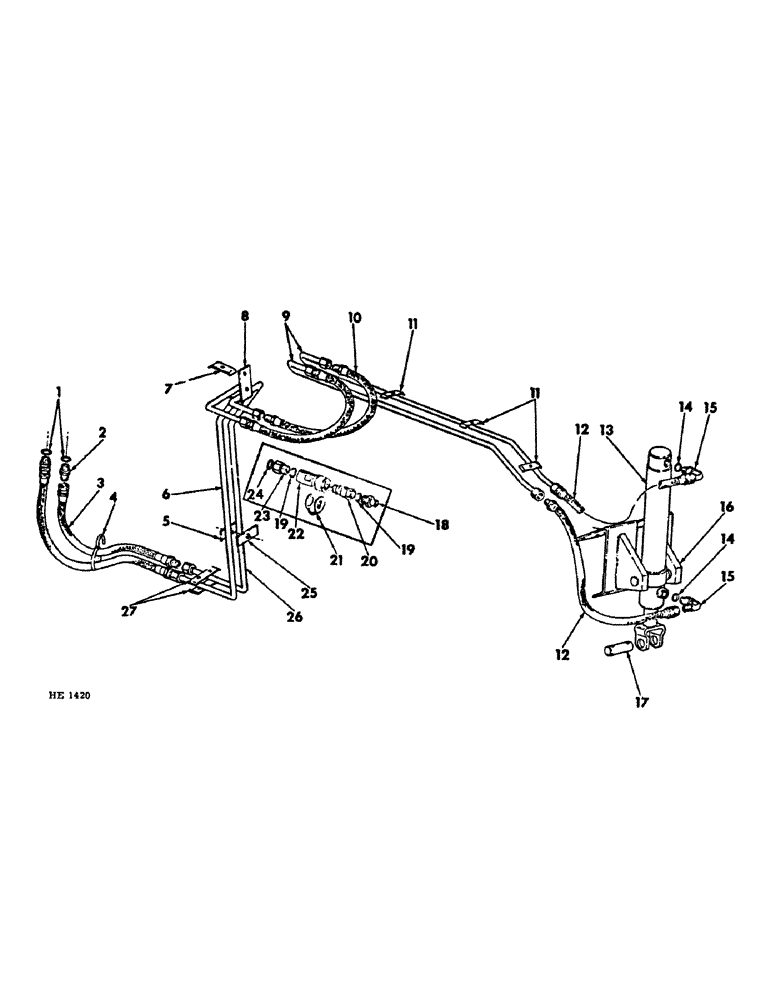

Запчасти Case IH 1550 (B-16) - BUCKET CONTROL HYDRAULIC SYSTEM

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port reducing union

2шт.

2

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8" to 3/4" tractor valve port reducing

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

valve port reducing union

2шт.

3

675297R92

HOSE

hyd valve

2шт.

4

816502C1

STRAP

hose tie

1шт.

5

379045R1

CLAMP

dual tube lower

1шт.

6

851640C11

TUBE,.5" OD

bucket roll back boom jumper hose to tractor valve hose

1шт.

7

379045R1

CLAMP

dual tube upper

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

851515C1

ANGLE

clamp support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

851615C11

TUBE, bucket hyd cyl hose to tractor control valve hose tube .5" OD

2шт.

10

851577C91

HOSE

boom jumper

2шт.

11

379045R1

CLAMP

hyd tube dual

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

675297R92

HOSE

bucket hyd, Serial Range: cyl-tubes

2шт.

13

675294R92

CYLINDER, bucket control hyd (for component parts refer to "bucket control hydraulic cylinder" in section "B" of this catalog)

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port elbow

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" - 90 deg. bucket hyd cyl port

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd cyl port

2шт.

16

675295R91

ANCHOR

bucket hyd cyl (when stock exhausted order 2-851571C1, anchor)

2шт.

19922R1

BOLT,Hex, 1/2"-13 x 9", G5

1/2 x 9"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

851571C1

ANCHOR

bucket hyd cyl (1972 season and since)

2шт.

19922R1

BOLT,Hex, 1/2"-13 x 9", G5

1/2 x 9"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

17

652299R2

PIN, bucket hyd cyl rod end

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

18

478754R1

ADAPTER

CONNECTOR, 7/8" to 3/4" reducer (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

cyl hose reducer union and connector (when loader hyds equipped w/hyd quick disconnect couplers)

4шт.

20

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

21

373220R1

PLUG

CAP, coupler dust (when loader hyds equipped w/hyd quick- disconnect couplers)

2шт.

22

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female (when loader hyds equipped w/hyd quick-disconnect couplers)

2шт.

23

407045R1

FITTING

UNION, 7/8" to 3/4" cyl hose reducing (when loader hyds equipped w/hyds quick disconnect couplers)

2шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

cyl hose reducer union (when loader hyds equipped w/hyd quick disconnect couplers)

2шт.

25

850585C1

BAR

dual tube clamp

1шт.

180089

SPRING

5/16 x 2-1/4"

1шт.

26

851641C11

TUBE,.5" OD

bucket dump boom jumper hose to tractor valve hose

1шт.

27

851602C1

CLAMP

tube triple

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
