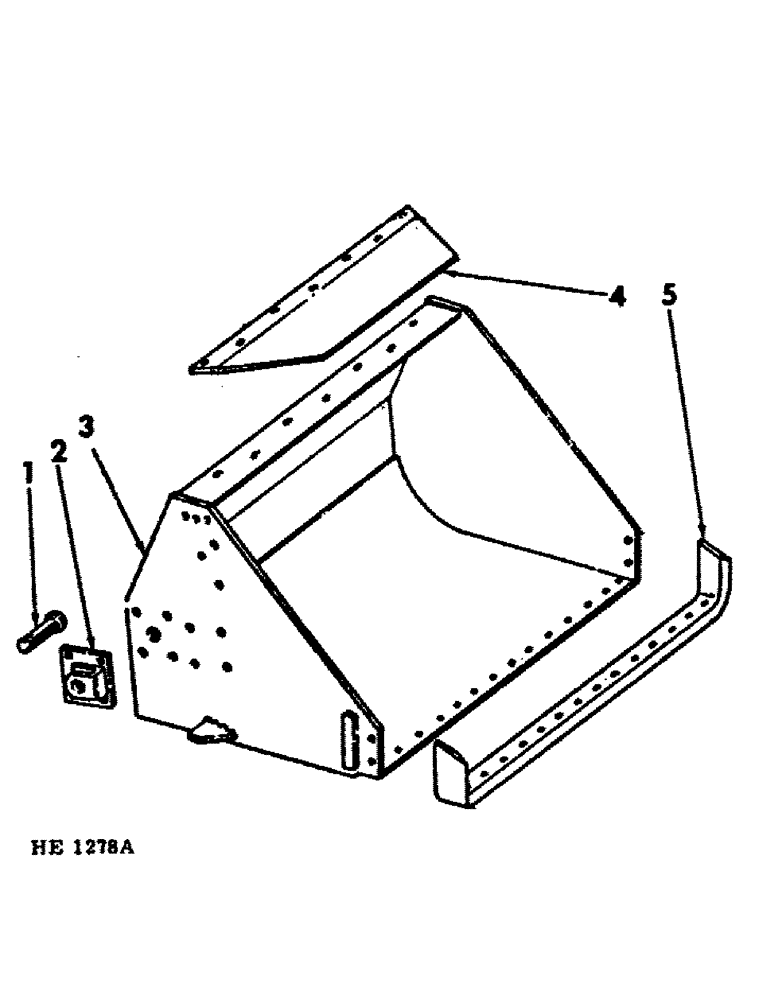

Запчасти Case IH 1550 (B-15) - MATERIAL BUCKET

1

468234R1

PIN

bucket pivot

2шт.

446284

WASHER, 1-3/16 x 2-1/2 x .165

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

2

467248R11

BRACKET, bucket pivot

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

BUCKET, 40" material (when bucket equipped w/ hyd bucket control) (for use on International B275, B414, 276, 434, British built model 444, 454 & 575 tractors) (Order on machine order form)

1шт.

3

BUCKET, 40" material (when bucket equipped w/ mechanical bucket control) (for use on International B275, B414, 276, 354, 434, British built model 444, 454 & 574 tractors) (order on machine order form)

1шт.

4

675330R1

GUARD, material bucket spill

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

5

652333R1

BLADE

EDGE, bucket front cutting

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1" tuss-hd

17шт.
