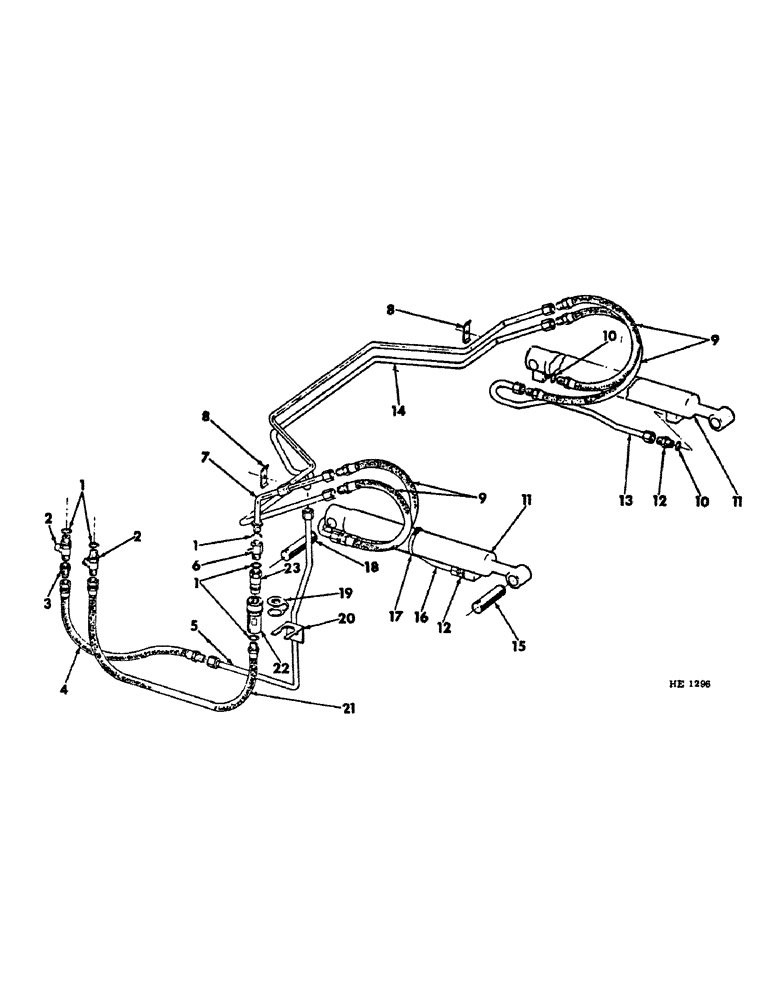

Запчасти Case IH 1550 (B-08) - BOOM LIFT HYDRAULIC SYSTEM

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

flow restrictor and hyd tee

5шт.

2

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

tractor valve ports

2шт.

3

851442C1

CONNECTOR, ELEC

CONNECTOR, 7/8" x 3/4" tractor valve port reducer

1шт.

4

675297R92

HOSE

lowering circuit tube to cross-over tube to tractor valve

1шт.

5

851466C11

TUBE,.5" OD

lowering circuit cross-over tube to tractor valve hose

1шт.

6

851594C91

CHECK VALVE

RESTRICTOR, raise circuit cross-over tube flow

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

flow restrictor

2шт.

7

851467C11

HYD TUBE,.5" OD

TUBE, lift hyd cyl raise circuit cross-over

1шт.

8

379045R1

CLAMP

cross-over tube dual

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

851577C91

HOSE

cross-over tubes to hyd lift cyl front & rear ports

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

front & rear port

4шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

front & rear port hyd cyl

4шт.

11

851505C91

CYLINDER

boom lift hyd (for component parts of this assembly, refer to "boom lift hydraulic cylinder" in section "B" of this catalog)

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FITTING, 1/8" - 90deg. elbow

4шт.

12

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, hyd lift cyl front port

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

front port union

2шт.

13

851613C11

HYD TUBE,.5" OD

TUBE, hyd lift cyl lower circuit LH

1шт.

14

851468C11

TUBE,.5" OD

lift hyd cyl cross-over lowering circuit

1шт.

15

378479R1

SHAFT

PIN, lift hyd cyl rod or front

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

16

851614C11

HYD TUBE

TUBE, lift hyd cyl lower circuit RH

1шт.

17

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hyd lift cyl tube

2шт.

18

851506C1

PIN

BAR, lift hyd cyl rear

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

19

373220R1

PLUG

CAP, quick-disconnect coupler dust

1шт.

20

851569C1

ANGLE

quick coupler retaining (to retain coupler when lift circuit disconnected)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

850584C91

HOSE ASSY.

HOSE, quick-disconnect couplers to tractor valve raise circuit

1шт.

22

395150R91

COUPLING, QUICK, FEM

COUPLER, self-sealing female quick-disconnect (includes 1-385713R1, o-ring)

1шт.

23

395149R1

QUICK MALE COUPLING

COUPLER, self-sealing male quick-disconnect

1шт.
