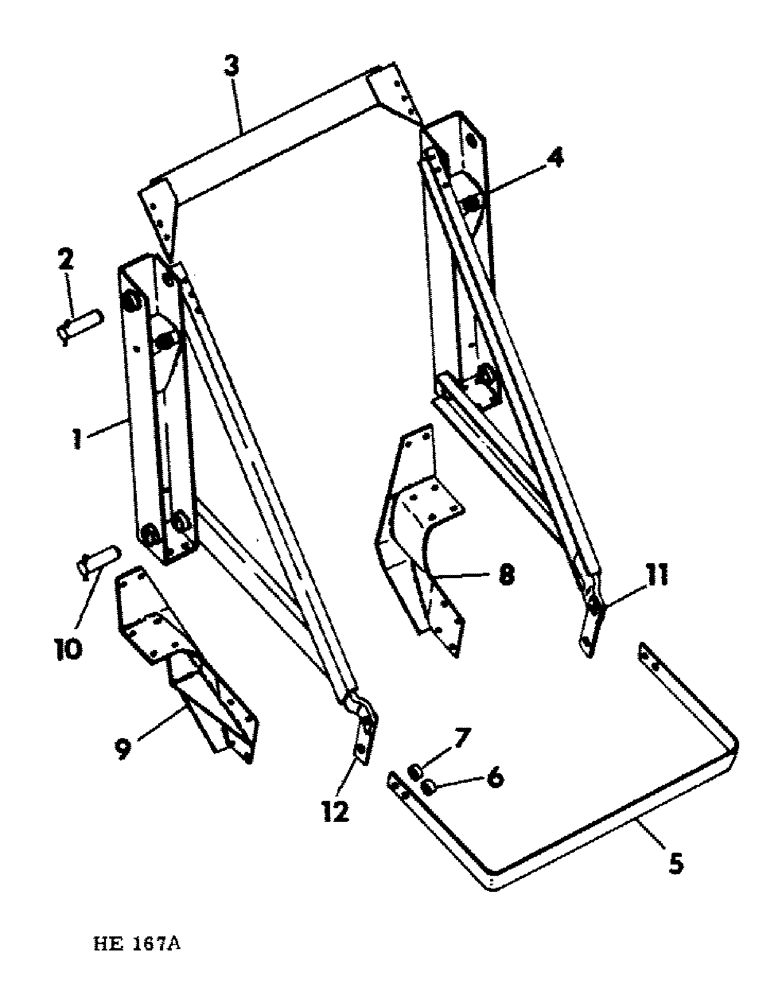

Запчасти Case IH 1501 (A-05) - SUB-FRAME AND GRILLE GUARD, TRACTORS 424 1966 TO 1972, B414 21967 TO 1972, 276 1969 TO 1972
№
Артикул
Название
Примечание
Количество
1
676498R91
FRAME
SUB-FRAME, RH (prior to l971) (for service order 1-851644C1 sub- frame, 1 - 851650C1 support 2- 271771 bolt and 2 - 220086 nuts
1шт.
1
851644C1
FRAME
SUB-FRAME RH, Serial Range: (1971-1972)
1шт.
2
851506C1
PIN
BAR, boom pivot
1шт.
378480R1
HEADED PIN,5/16" x 1 7/8"
PIN, 5/16 x 1-7/8" std-hd dld
2шт.
12235R1
1/8" x 5/8" 1/8" x 5/8"
2шт.
3
851638C1
MEMBER
CROSSMEMBER, sub-frame
1шт.
180145
BOLT,Hex, 7/16" - 14 x 1", Gr 5
7/16 x 1"
6шт.
NLS
NO LONGER SERVICED
NUT, 7/16"
6шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
6шт.
4
676497R91
FRAME
SUB-FRAME, LH prior to 1971) (For service order 1-851643C1 sub- frame, 1 - 851649C1 support 2 - 271771 bolt and 2 -220086 nuts)
1шт.
4
851643C1
FRAME
SUB-FRAME LH, Serial Range: (1971-1972)
1шт.
5
676530R1
GUARD
grille
1шт.
6
676529R1
SPACER
1-1/8 x 2-3/16"
2шт.
271778
SCREW,Hex, 3/4"-10 x 3 3/4", G5
BOLT, 3/4 x 3-3/4"
2шт.
7
630281R1
SPACER, 1-1/8 x 11/16"
4шт.
271778
SCREW,Hex, 3/4"-10 x 3 3/4", G5
BOLT, 3/4 x 3-3/4"
2шт.
8
676511R92
SUPPORT
LH
1шт.
9
676512R92
BRACKET
SUPPORT, RH
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
4шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2"
8шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/4"
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
12шт.
120384
WASHER,1/2"
LOCK, 1/2"
12шт.
10
851444C1
PIN
BAR, lift cylinder
2шт.
378480R1
HEADED PIN,5/16" x 1 7/8"
PIN, 5/16 x 1-7/8" std-hd dld
2шт.
12235R1
1/8" x 5/8" 1/8" x 5/8"
2шт.
11
851649C1
SUPPORT
sub-frame LH, Serial Range: (1971-1972)
1шт.
12
851650C1
SUPPORT
sub-frame RH, Serial Range: (1971-1972)
1шт.
271771
HOUSING,Hex, 3/4" - 10 x 2", Gr 5
3/4 x 2"
4шт.
271766
TUBE
BOLT, 3/4 x 1-3/4"
2шт.
Выбрано товаров: 31
