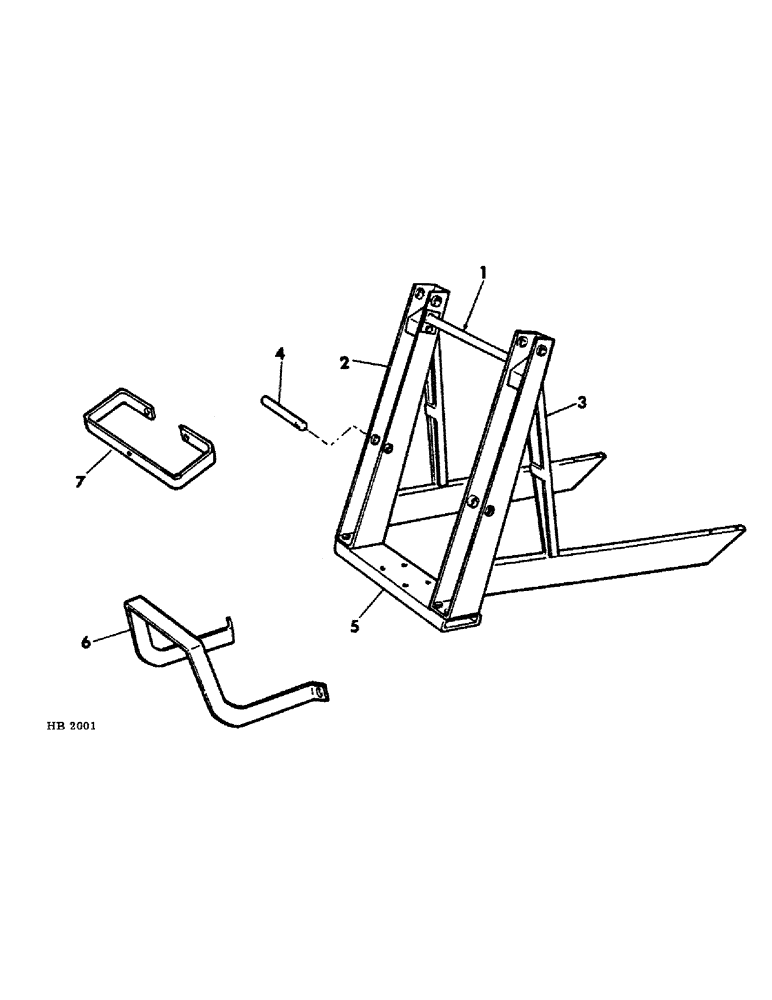

Запчасти Case IH 1501 (A-04) - SUB-FRAME AND GRILLE GUARD, TRACTORS MF35 & MF50 1965 TO 1968

1

675786R11

CROSSMEMBER, upper sub-frame (MF 35 tractor)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

675766R1

SUB-FRAME RH

1шт.

3

675765R1

SUB-FRAME LH

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

4шт.

4

851444C1

PIN

BAR, lift cyl

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

5

675788R91

CROSSMEMBER, lower sub-frame

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2", Course Threads

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

8шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

8шт.

6

675797R1

GUARD, grill (MF 35 tractor)

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2", Course Threads

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

7

675798R1

GUARD, grill (MF 50 tractor)

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2

2шт.
