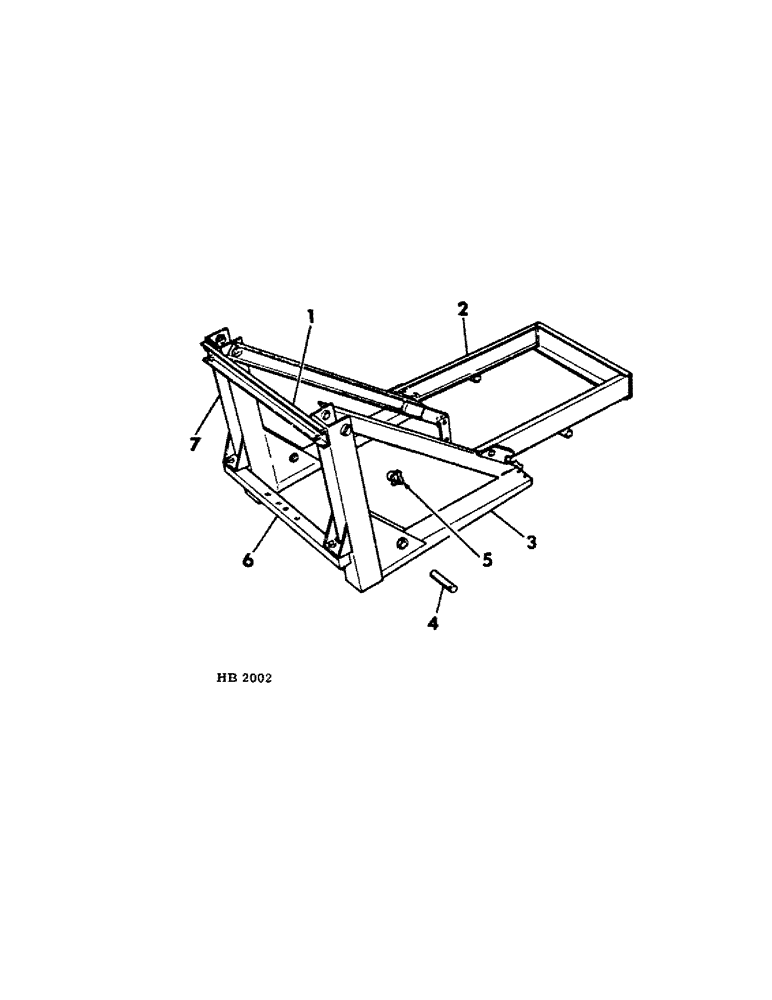

Запчасти Case IH 1501 (A-03) - SUB-FRAME AND GRILLE GUARD, TRACTORS B414 1964 TO 1967, B275 1964 TO 1970

1

675261R1

CHANNEL, upper cross

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

675266R91

GUARD, grille

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

1/2 x 1-1/8"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

675247R91

SUB-FRAME RH

1шт.

271766

TUBE

BOLT, 3/4 x 1-3/8"

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

4

851444C1

PIN

BAR, lift cyl

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

5

119702R1

CLIP

headlight wiring

2шт.

6

675262R1

BAR, sub-frame lower cross

1шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

5/8-NF x 3"

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3", Course Threads

4шт.

425-1110

NUT,5/8"-18, G5

5/8-NF

4шт.

7

675246R91

SUB-FRAME LH

1шт.

271766

TUBE

BOLT, 3/4 x 1-3/8"

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.
