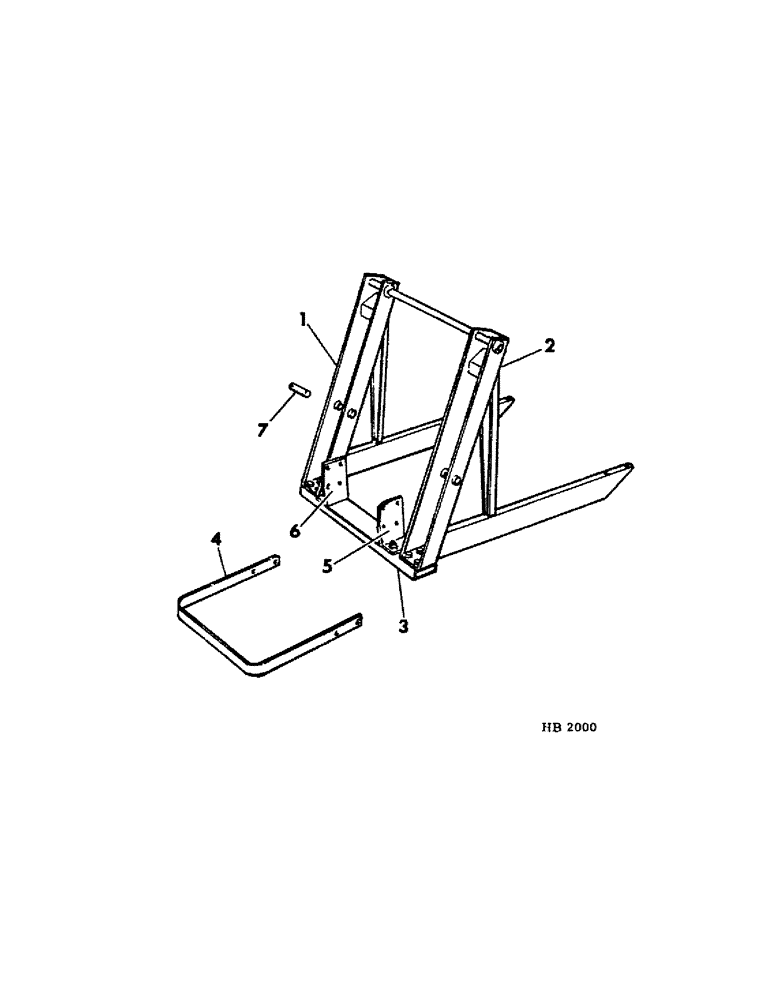

Запчасти Case IH 1501 (A-03[A]) - SUB-FRAME AND GRILLE GUARD, TRACTORS 424 1965 TO 1972, 444 USA MODEL 1967 TO 1972

1

675778R91

SUB-FRAME RH, grille guard

1шт.

2

675777R91

SUB-FRAME LH, grille guard

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 x 7-1/2", sub-frame and grille guard

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8", sub-frame and grille guard

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074 ga, sub-frame and grille guard

2шт.

3

675791R11

CROSSMEMBER, lower sub-frame, sub-frame and grille guard

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4", sub-frame and grille guard

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8", sub-frame and grille guard

8шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga, sub-frame and grille guard

8шт.

4

675799R1

GUARD, grille, sub-frame

1шт.

SA6175

SPACER, grille guard, sub-frame

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Sub-frame and grille guard Hex, 3/4"-10 x 3", G5

4шт.

5

675792R1

SUPPORT, crossmember LH, sub-frame and grille guard

1шт.

6

675793R1

SUPPORT, crossmember RH, sub-frame and grille guard

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 x 1-1/2", sub-frame and grille guard

8шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 x 3-1/2", sub-frame and grille guard

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8", sub-frame and grille guard

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga, sub-frame and grille guard

4шт.

7

851444C1

PIN

BAR, lift cyl, sub-frame and grille guard

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd dld, sub-frame and grille guard

2шт.

12235R1

1/8" x 5/8", sub-frame and grille guard 1/8" x 5/8"

2шт.
