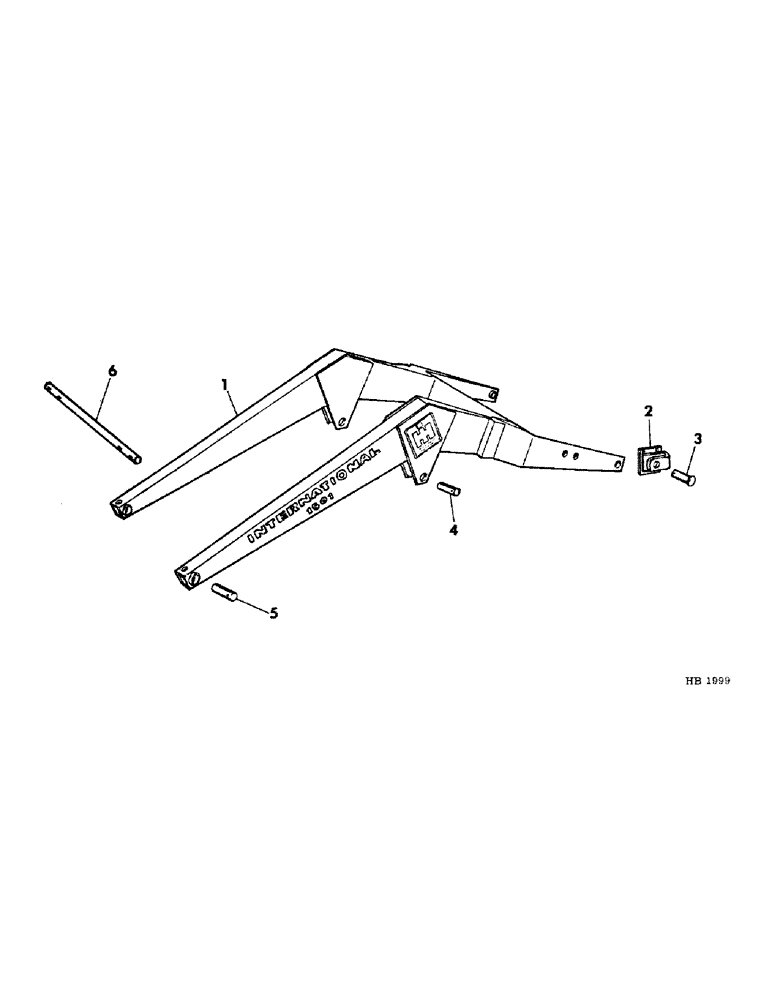

Запчасти Case IH 1501 (A-02) - BOOM, PRODUCT GRAPHICS

1

851492C1

BOOM

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" lub

2шт.

2

467248R11

BRACKET, bucket pivot (Not for use w/snow bucket)

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

468234R1

PIN

bucket

2шт.

446284

WASHER, 1-3/16 x 2-1/2 x .165 ga

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

4

378479R1

SHAFT

PIN, lift cylinder

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd dld

2шт.

462131R1

WASHER, 1-9/64 x 2-3/32 x .25 ga, (For tractors B275, B414, 434 and 276)

4шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga, (For tractors B275, B414, 434 and 276)

4шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

5

851506C1

PIN

BAR, boom pivot (For Tractors B275, B414, 434 and 276)

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd dld

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

5

675794R1

BAR, boom pivot (For Tractor MF35)

2шт.

110682H

PIN, special

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

675795R1

BAR, boom pivot & sub-frame cross (For Tractor MF 50) (For Tractors 424 and 444 U.S.A. model)

1шт.

110682H

PIN, special

4шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

547494R91

DECAL

PACKAGE, product graphic composed of: (6) "IH"

1шт.

547495R91

DECAL

PACKAGE, product graphic composed of: (8) "International"

1шт.

547497R91

PACKAGE

product graphic "Model Designation"

1шт.
