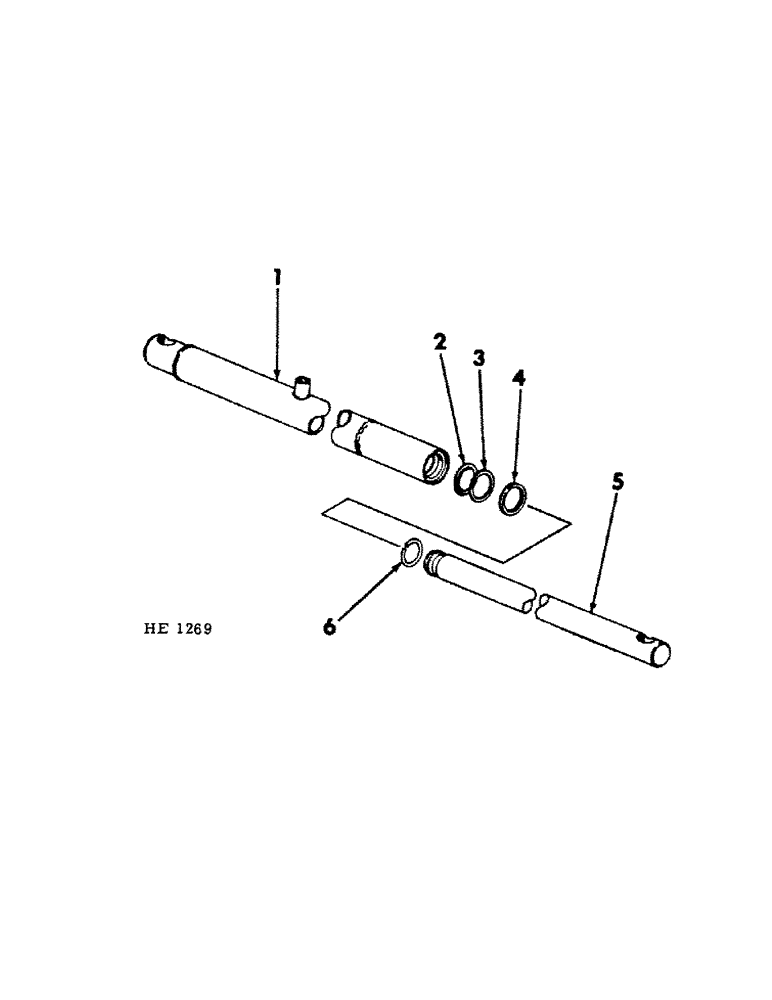

Запчасти Case IH 1501 (A-40) - BOOM LIFT CYLINDER, 1-3/4 X 27-7/16 SINGLE ACTING

675280R91

CYLINDER, hydraulic boom lift (composed of all parts listed unless otherwise noted)

2шт.

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 5/16-65deg. (not part of cylinder)

1шт.

1

675369R91

PIPE, lift cylinder

1шт.

2

O-RING, piston shaft (for service order 1 - 675371R91 package) (NSS)

1шт.

3

WASHER, back-up (for service order 1 - 675371R91 package) (NSS)

1шт.

4

SEAL, piston shaft (for service order 1 - 675371R91 package) (NSS)

1шт.

5

675370R1

SHAFT, hyd cyl piston

1шт.

6

RING, piston shaft lk (for service order 1 -675371R91 package) (NSS)

1шт.

675371R91

SEAL KIT

PACKAGE, hyd cyl seal service composed of: (1) o-ring (NSS), (1) ring (NSS), (1) seal (NSS), (1) washer (NSS)

1шт.

675694R91

CYLINDER, boom lift hyd (composed of all parts listed unless otherwise noted) (for service order 1 - 675822R91 pipe, 1 - 675823R91 shaft and 1 - 474845R91 package)

2шт.

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITTING, 5/16-65deg. (not part of cylinder)

4шт.
