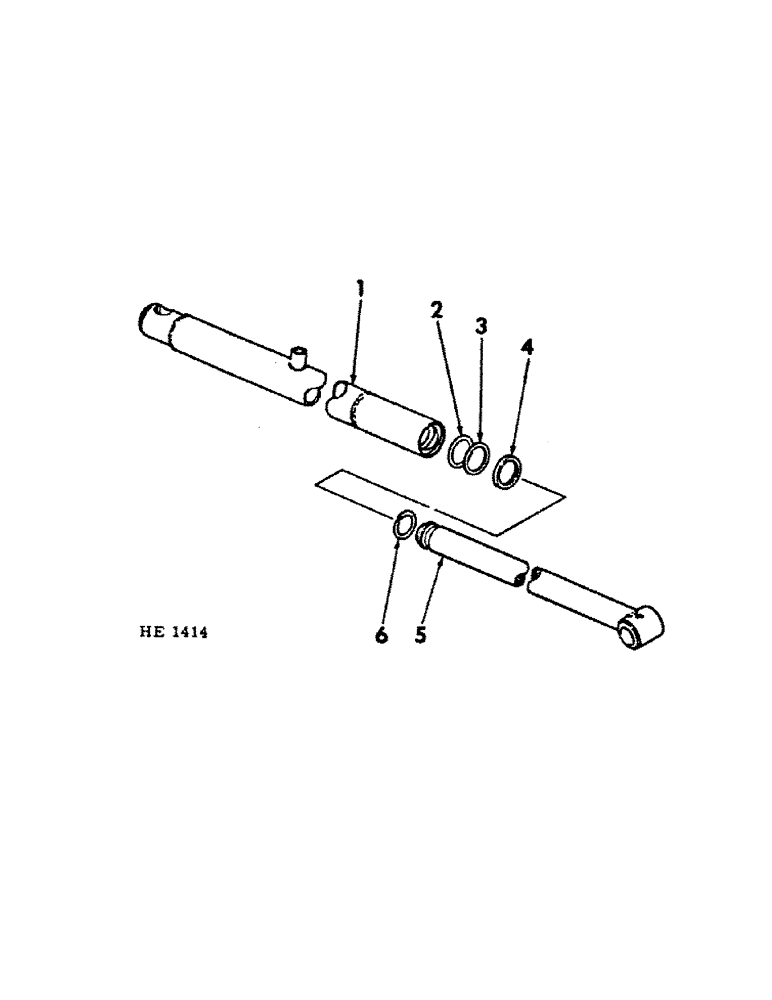

Запчасти Case IH 1501 (A-40[A]) - BOOM LIFT CYLINDER, 1-1/2 X 25-1/2 SINGLE ACTING

1

675822R91

PIPE, lift cylinder

1шт.

2

O-RING, piston shaft (for service order 1 - 471845R91 package) (NSS)

1шт.

3

WASHER, back-up (for service order 1 - 471845R91 package) (NSS)

1шт.

4

SEAL, piston shaft (for service order 1 - 471845R91 package) (NSS)

1шт.

5

675823R91

SHAFT, hyd cyl piston

1шт.

6

RING, piston shaft lk (for service order 1 - 471845R91 package) (NSS)

1шт.

471845R91

PACKAGE, hyd cyl seal service composed of: (1) o-ring (NSS) (1) ring (NSS), (1) seal (NSS), (1) washer (NSS)

1шт.
