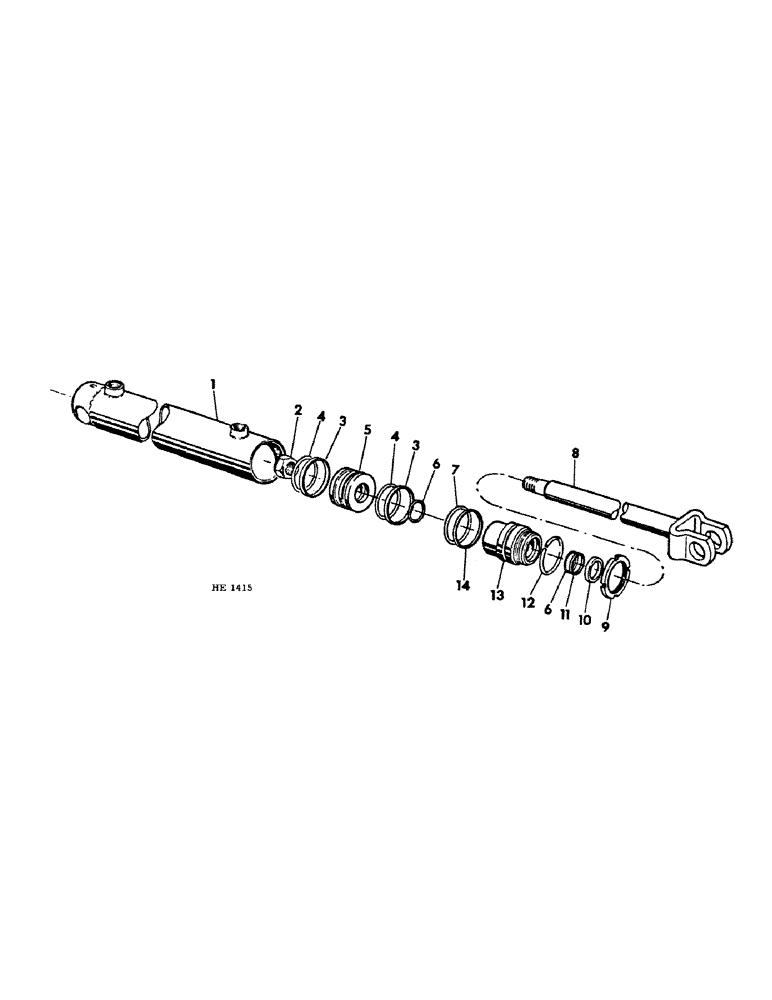

Запчасти Case IH 1501 (A-39) - BUCKET CYLINDER, 2-1/2 X 11-29/32 DOUBLE ACTING

675695R91

CYLINDER, bucket control hydraulic (composed of all parts listed below)

1шт.

1

675824R91

PIPE, hyd cyl

1шт.

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, cyl pipe lub

1шт.

2

9413974

LOCK NUT,7/8"-14, GB

NUT, piston rod

1шт.

3

RING, 2-1/2" teflong piston (for service order 1 -675828R91, package) (NSS)

2шт.

4

O-RING, 3/32 x 2-3/16" piston (for service order 1 - 675828R91, package) (NSS)

2шт.

5

675826R1

PISTON, hyd cyl

1шт.

6

O-RING, 1/8 x 1-1/4 piston rod (for service order 1 - 675828R91, package) (NSS)

2шт.

7

O-RING, 1/8 x 2-1/4" hyd cyl head (for service order 1 - 675828R91, package) (NSS)

1шт.

8

675825R91

ROD, hyd cyl piston

1шт.

9

675376R1

NUT

front head

1шт.

10

SEAL, piston rod (for service order 1 - 675828R91 package) (NSS)

1шт.

11

WASHER, 1/8 x 1-1/4" I.D. piston rod back-up (for service order 1 - 675828R91, package) (NSS)

1шт.

12

RING, 2-5/8" O.D. cyl front hd lk (for service order 1 - 675828R91, package) (NSS)

1шт.

13

675827R1

HEAD, hyd cyl front

1шт.

14

WASHER, 1/8 x 2-1/4 o-ring back-up (for service order 1 - 675828R91 package) (NSS)

1шт.

675828R91

SEAL KIT

PACKAGE, hyd cyl seal service composed of: (2) ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), (1) o-ring (NSS), (1) washer (NSS), (1) seal (NSS), (1) washer (NSS), (1) ring (NSS)

1шт.
