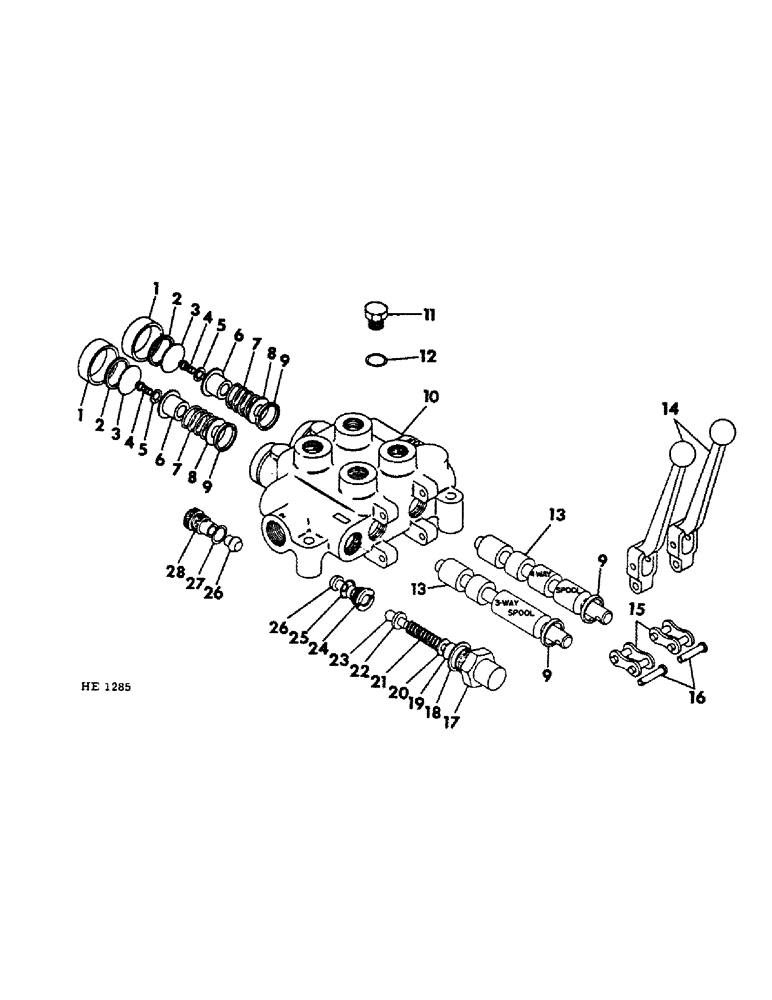

Запчасти Case IH 1501 (A-34) - HYDR. CONTROL VALVE, TWO SPOOL, MDL B414 1965-66, B275 1965- 70, MF35 & MF50 1965-68, 424 1965-66
№
Артикул
Название
Примечание
Количество
675433R91
VALVE, hyd control two spool (composed of all parts listed below, unless otherwise specified)
1шт.
180132
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
3/8 x 2-1/4"
3шт.
(+) Not part of valve assy
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
(+) Not part of valve assy
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
(+) Not part of valve assy
1шт.
1
663034R1
CYLINDER END CAP
CAP, bonnet
2шт.
2
663025R1
OIL SEAL
RING, end cap retaining
2шт.
3
663023R1
CAP
spool end
2шт.
4
85700996
SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"
centering spg retaining
2шт.
5
174878
WASHER
1/4" int-t-lk
2шт.
6
663022R1
COLLAR
stop
2шт.
7
663024R1
SPRING
centering
2шт.
8
149372R1
WASHER
centering spg stop
2шт.
9
663032R1
O-RING
SEAL, valve spool
4шт.
10
HOUSING, control (for service order 1 - 675433R91, valve) (NSS)
1шт.
11
9410359
PLUG
control valve boss
3шт.
13
SPOOL, hyd control valve (for service order 1 - 675433R91, valve) (NSS)
2шт.
14
380366R1
HANDLE
hyd control valve
2шт.
15
1397D
DRAG LINK
LINK, control handle chain
2шт.
187357
C-PIN, 1/16 x 1-1/2"
2шт.
16
Q711
HEADED PIN,1/4" x 1 1/4"
PIN, control valve handle
2шт.
19454R1
PIN
C-PIN, 5/16 x 7/16"
2шт.
17
380363R1
FITTING
BODY, relief valve
1шт.
18
663029R1
GASKET
valve body
1шт.
19
380365R1
SHIM
relief valve body
1шт.
20
635788R1
WASHER
SPACER, valve spg
1шт.
21
635970R1
SPRING, relief valve
1шт.
22
635785R1
SPACER
spg
1шт.
23
16014R1
BALL
7/16" dia steel
1шт.
24
380362R1
SEAT
relief valve
1шт.
26
666719R1
VALVE POPPET
BALL, 5/8" dia check
2шт.
27
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
check ball plug
1шт.
28
666722R1
PLUG
check ball
1шт.
Выбрано товаров: 37
