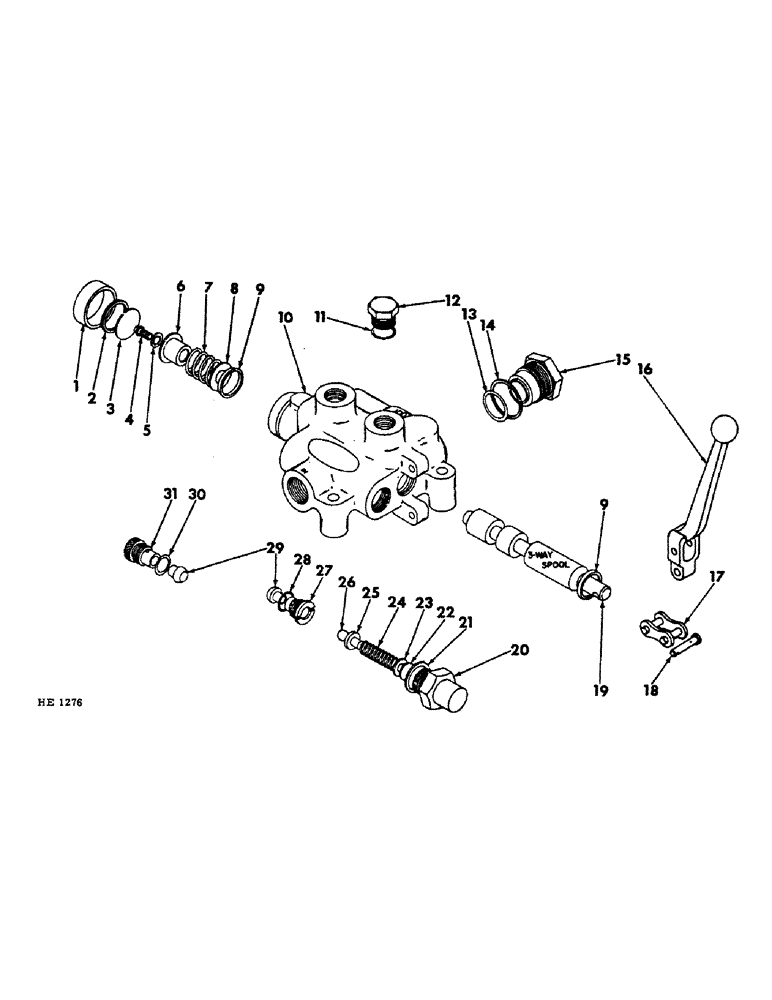

Запчасти Case IH 1501 (A-32) - HYDRAULIC CONTROL VALVE, SINGLE SPOOL, MODEL 424 1966 TO 1972, MODEL 444 USA 1967 TO 1972

676438R91

VALVE, hyd control one spool (composed of parts listed, unless otherwise noted)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

3шт.

(+) Not part of valve assy

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

(+) Not part of valve assy

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

(+) Not part of valve assy

1шт.

1

663034R1

CYLINDER END CAP

CAP, bonnet

1шт.

2

663025R1

OIL SEAL

RING, end cap retaining

1шт.

3

663023R1

CAP

end

1шт.

4

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2" stop collar

1шт.

5

174878

WASHER

1/4" int-t-lk

1шт.

6

663022R1

COLLAR

centering spg stop

1шт.

7

663024R1

SPRING

centering

1шт.

8

149372R1

WASHER

centering spg stop

1шт.

9

663032R1

O-RING

SEAL, spool

2шт.

10

HOUSING, control valve (for service order 1 - 676438R91, valve) (NSS)

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

valve housing boss plug

1шт.

12

9410359

PLUG

valve housing boss

1шт.

13

666218R1

SEAL

SEAL, power beyond sleeve

1шт.

14

635971R1

GASKET, outlet port w/copper closed jacket type) (for use w/675368R1 sleeve)

1шт.

14

850249C1

SEAL

GASKET, outlet port (rubber type) (for use w/850248C1 sleeve)

1шт.

15

675368R1

SLEEVE

valve outlet port (for use w/external copper closed type gasket) (for service order 1 - 850248C1 sleeve and 1 - 850249C1 gasket)

1шт.

15

850248C1

SLEEVE

valve outlet port (for use w/internal rubber type gasket)

1шт.

16

380366R1

HANDLE

valve control

1шт.

17

1397D

DRAG LINK

LINK, control handle

1шт.

187357

C-PIN, 1/16 x 1-1/2"

1шт.

18

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, control handle

1шт.

19454R1

PIN

C-PIN, 5/64 x 7/16"

1шт.

19

SPOOL, 3 way control valve (for service order 1 - 676438R91, valve) (NSS)

1шт.

20

380363R1

FITTING

BODY, relief valve

1шт.

21

663029R1

GASKET

valve body

1шт.

22

380365R1

SHIM

relief valve

1шт.

23

635788R1

WASHER

SPACER, relief valve spg

1шт.

24

380364R1

SPRING

relief valve

1шт.

25

387135R1

GUIDE

SPACER, relief valve spg

1шт.

26

16014R1

BALL

relief valve check

2шт.

27

380362R1

SEAT

relief valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

relief valve seat

1шт.

29

666719R1

VALVE POPPET

BALL, relief valve check

2шт.

30

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

check ball plug

1шт.

31

666722R1

PLUG

check ball

1шт.
