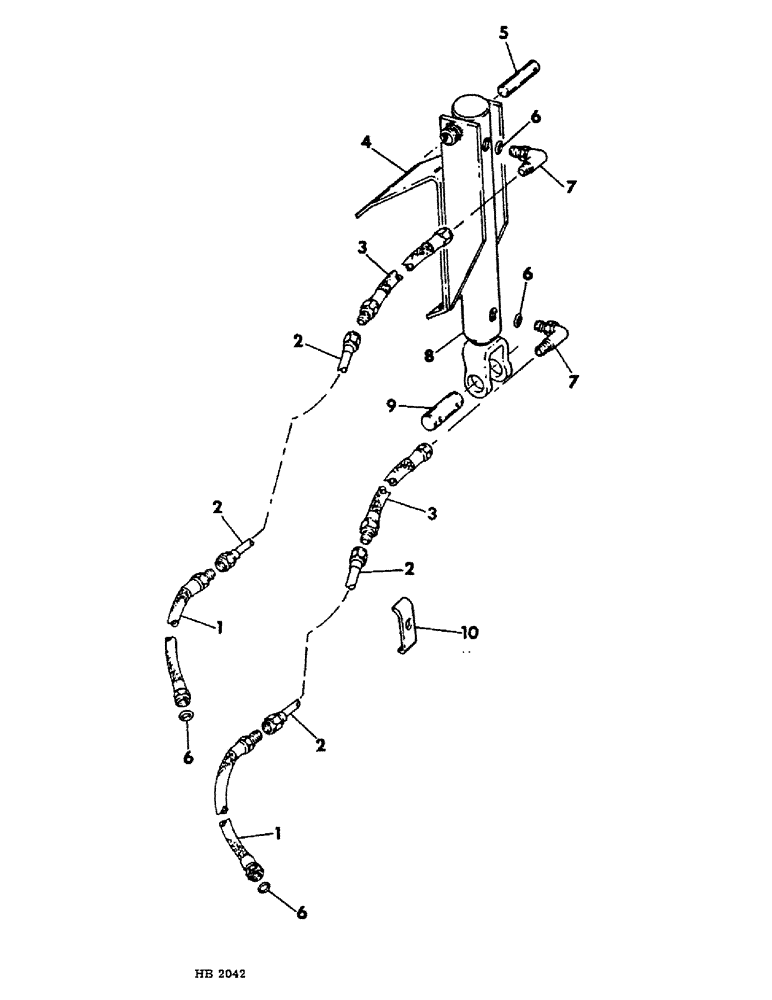

Запчасти Case IH 1501 (A-29) - BUCKET CONTROL HYDRAULIC SYSTEM, TRACTOR MODEL MF35, MF50, 424 AND 444 USA MODEL

1

675299R91

HOSE, cyl pipe

2шт.

2

675298R1

PIPE, cyl

2шт.

3

675297R92

HOSE

cyl

2шт.

4

675816R91

ANCHOR, cylinder

1шт.

19922R1

BOLT,Hex, 1/2"-13 x 9", G5

1/2 x 9"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

851444C1

PIN

bucket cyl boom

1шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8" std-hd-dld

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

7

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT 90 deg.

2шт.

8

675695R91

CYLINDER, bucket (for service parts refer to "Bucket Cylinder")

1шт.

9

652299R2

PIN, bucket cyl pivot

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

10

379045R1

CLAMP

pipe

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
