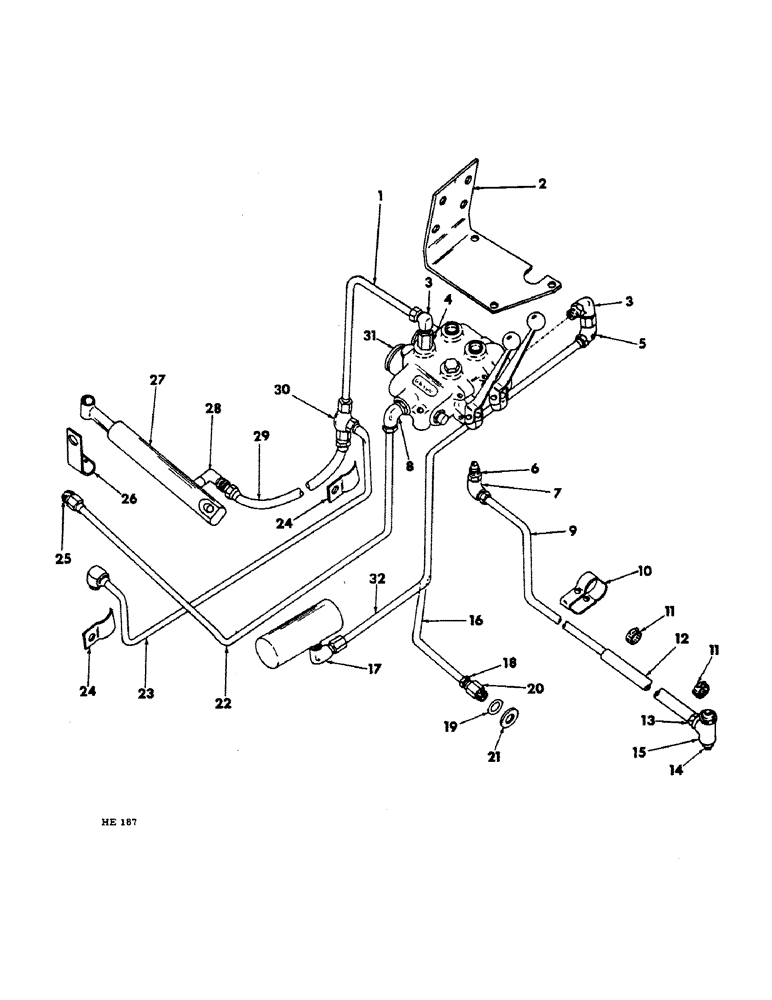

Запчасти Case IH 1501 (A-26) - HYDR SYSTEM, TRACTOR TO VALVE AND BOOM HYDR, MODEL 424 1966 TO 1972, MODEL 444USA 1967 TO 1972

1

675809R91

PIPE, tee to valve 1" OD, 8.92, 4.36" Length

1шт.

2

675818R2

BRACKET, valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

2шт.

4

675453R91

VALVE

RESTRICTOR, valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

restrictor

1шт.

5

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 deg. (outlet)

1шт.

6

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

BUSHING, reducing pipe

1шт.

7

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90 deg. (outlet)

1шт.

8

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

w/nut

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

9

676478R91

PIPE, return

1шт.

10

676045R1

CLAMP

return tube

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120275

NUT, 1/4"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

995218R1

CLAMP

hose

2шт.

12

675306R1

HOSE, return

1шт.

13

675307R1

FITTING

1/2" hose

1шт.

14

NLS

NO LONGER SERVICED

NIPPLE

1шт.

15

NLS

NO LONGER SERVICED

lift housing

1шт.

16

676480R91

TUBE

PIPE, power beyond (tractor w/out auxiliary filter)

1шт.

17

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

to filter (tractor w/auxiliary filter)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

1шт.

18

705520R1

NUT,0.69" Length

1/2" (tractor w/out auxiliary filter)

1шт.

19

705519R1

RING

sealing (tractor w/out auxiliary filter)

1шт.

20

704336R1

COUPLING, BREAK AWAY

CONNECTOR, (tractor w/out auxiliary filter)

1шт.

21

704337R1

SEALING WASHER

WASHER, (tractor w/out auxiliary filter)

1шт.

22

676476R91

PIPE, valve inlet

1шт.

23

675802R91

PIPE, boom cylinder LH

1шт.

24

446077R91

CLIP

CLAMP, pipe

2шт.

25

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, flow divider

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

connector

1шт.

26

851637C1

SUPPORT

boom lift cylinder lock

2шт.

JA623

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3" std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

27

675694R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

28

637865R1

ELBOW, in cylinder

2шт.

29

675846R91

HOSE ASSY.

HOSE, 24" boom cylinder

2шт.

30

9402982

TEE,3/4"-16, 37 Degree

cylinder pipe

1шт.

31

676434R91

VALVE, control (for service parts refer to "Hydraulic Control Valve")

1шт.

32

676479R91

PIPE, power beyond (tractor w/auxiliary filter)

1шт.
