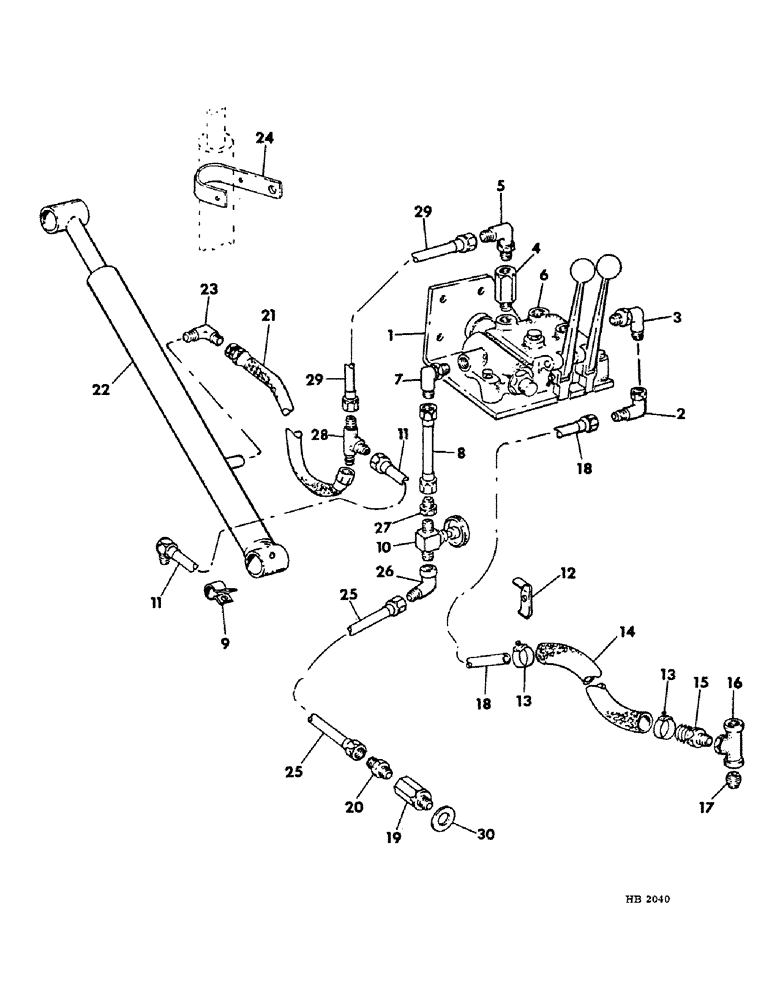

Запчасти Case IH 1501 (A-24) - HYDR SYSTEM, TRACTOR TO VALVE AND BOOM HYDR, MODEL 424 1965 TO 1966

1

675818R2

BRACKET, valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

swivel (outlet)

1шт.

3

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

w/nut (outlet)

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

4

675453R91

VALVE

RESTRICTOR, control valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

restrictor

1шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT, 1/2" tube 90 deg. in restrictor

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

1шт.

6

675433R91

VALVE, control (for service parts refer to "Hydraulic Control Valve")

1шт.

7

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

W/NUT, 90 deg. (inlet)

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

8

675440R91

PIPE, to cut-off valve 1" OD, 6.25" Length

1шт.

9

446077R91

CLIP

CLAMP, pipe

2шт.

10

675275R91

VALVE

cut-off

1шт.

11

675802R91

PIPE, boom lift cylinder LH

1шт.

12

676045R1

CLAMP

return pipe

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

995218R1

CLAMP

hose

2шт.

14

675306R1

HOSE, return

1шт.

15

675307R1

FITTING

1/2" hose

1шт.

16

218246

BOLT

return

1шт.

17

144613

LINE

NIPPLE, 3/4 close pipe

1шт.

18

675821R91

PIPE, return

1шт.

19

675278R1

ADAPTER

lift housing

1шт.

20

383118R1

FITTING

CONNECTOR, 1/2" tube to 1/2" pipe between pipe and adapter

1шт.

21

675846R91

HOSE ASSY.

HOSE, 24" boom cylinder

2шт.

22

675694R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

23

637865R1

ELBOW, 1/2" tube to 3/8" pipe 90 deg. in cylinder port

2шт.

24

851637C1

SUPPORT

boom lift cylinder lock

2шт.

JA623

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3" std-hd dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

1шт.

25

675808R91

PIPE, cut-off valve to lift housing

1шт.

26

9402904

ELBOW, 1/2" tube to 3/8" pipe 90 deg. on cut-off valve

1шт.

27

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 1/2" tube to 3/8" pipe at cut-off valve

1шт.

28

9402982

TEE,3/4"-16, 37 Degree

cylinder pipe

1шт.

29

675809R91

PIPE, tee to control valve 1" OD, 8.92, 4.36" Length

1шт.

30

704337R1

SEALING WASHER

WASHER, adaptor

1шт.
