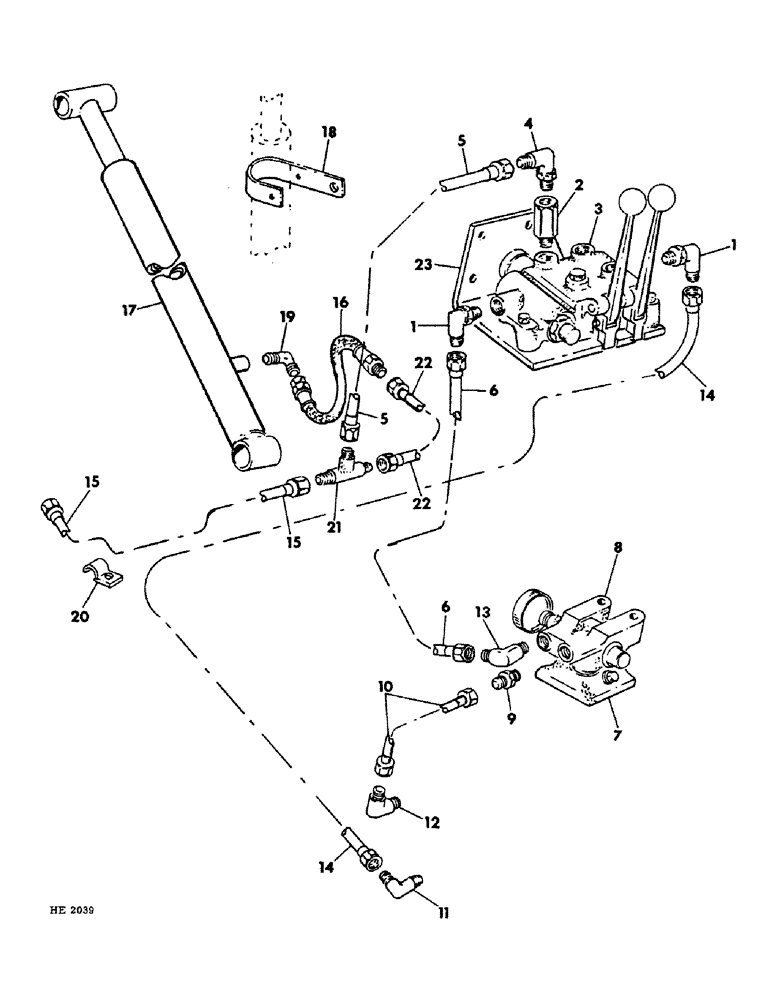

Запчасти Case IH 1501 (A-22) - HYDR SYSTEM, TRACTOR TO VALVE AND BOOM HYDR, MODEL MF35 & MF50 1965 TO 1968

1

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

W/NUT, 1/2" tube to 5/8" str 90 deg. at valve inlet and outlet

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

2шт.

2

675453R91

VALVE

RESTRICTOR, control valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

restrictor

1шт.

3

675433R91

VALVE, control (for service parts refer to "Hydraulic Control Valve")

1шт.

4

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT, 1/2" tube at restrictor

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

1шт.

5

675810R91

PIPE, tee to control valve

1шт.

6

675812R91

PIPE, control valve to diverter valve

1шт.

7

675813R91

MANIFOLD, diverter valve

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

manifold

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

471491R1

VALVE, diverter

1шт.

9

383118R1

FITTING

CONNECTOR, 1/2" pipe to 1/2" tube in diverter valve

1шт.

10

675819R91

PIPE, return

1шт.

11

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

1/2" tube to 3/8" pipe 90{0) return

1шт.

12

637865R1

ELBOW, 1/2" tube to 3/8 pipe 90 deg. return

1шт.

13

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

1/2" tube to 1/2" pipe in diverter valve

1шт.

14

675280R91

PIPE, return

1шт.

15

675805R91

PIPE, boom cylinder RH

1шт.

16

675282R91

HOSE

16" boom cylinder

2шт.

17

675694R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

18

675796R1

SUPPORT, boom lift cyl lock

2шт.

JA623

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3" std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

19

637865R1

ELBOW, 1/2" tube to 3/8" pipe in cylinder port

2шт.

20

341670R1

CLAMP, pipe

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

9402982

TEE,3/4"-16, 37 Degree

cylinder pipe

1шт.

22

675806R91

PIPE, boom cylinder RH

1шт.

23

675818R2

BRACKET, valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
