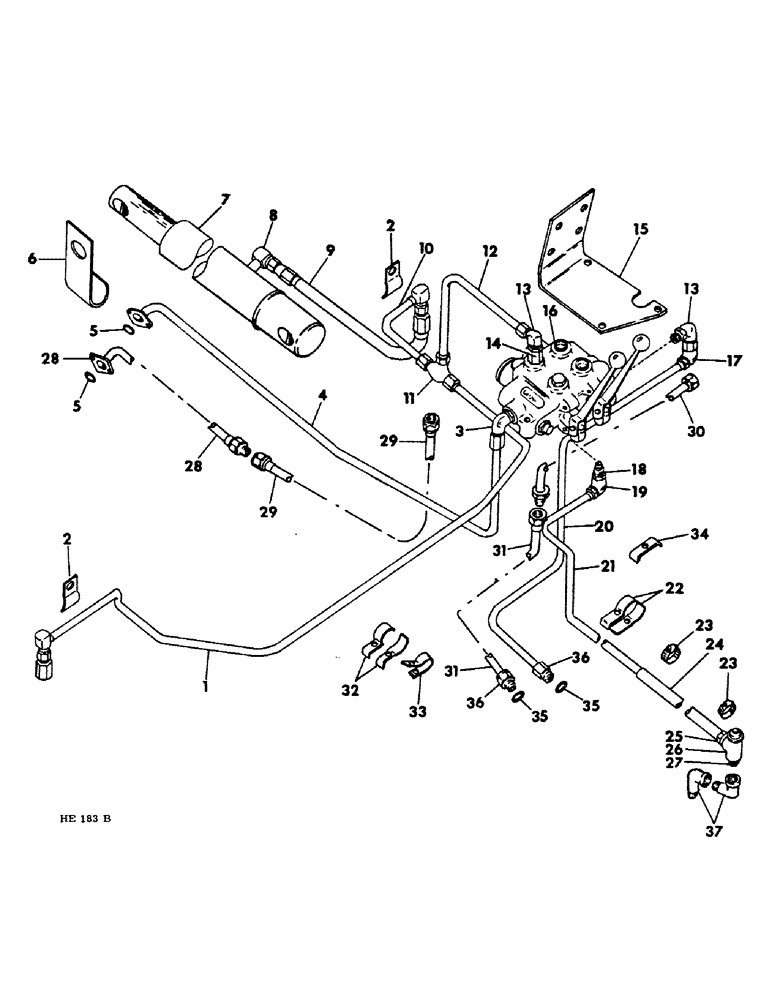

Запчасти Case IH 1501 (A-20) - HYDR SYSTEM, TRACTOR TO VALVE AND BOOM HYDR, MODEL 276 1967 TO 1972, MODEL 434 1966 TO 1972

1

676526R11

PIPE, boom cylinder

1шт.

2

446077R91

CLIP

CLAMP, pipe

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

W/NUT, 1/2" tube to 5/8" straight 90 deg. valve inlet port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

4

676534R91

TUBE

PIPE, valve to pump (434 tractor 1966 to 1969) (for service order 1 - 850326C1 pipe, 2 - 676045R1 clamps, 1 - 180024 bolt, 1 - 120375 nut, 1 - 120380 washer and 1 - 675846R91 hose)

1шт.

5

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pipe to pump

1шт.

6

851637C1

SUPPORT

boom lift cylinder lock

2шт.

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4" std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

7

675280R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

8

637865R1

ELBOW, 1/2" tube to 3/8" pipe 90 deg. in cylinder port

2шт.

9

675846R91

HOSE ASSY.

HOSE, 24" boom cylinder

2шт.

10

676527R11

PIPE, boom cylinder RH 1" OD, 6.2, 2.1" Length

1шт.

11

9402982

TEE,3/4"-16, 37 Degree

cylinder pipe

1шт.

12

676528R11

PIPE, tee to valve 1" OD, 11.8, 3.2" Length

1шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT, 1/2" tube 90 deg. at restrictor and valve power beyond

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

2шт.

14

675453R91

VALVE

RESTRICTOR, control valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

restrictor

1шт.

15

675818R2

BRACKET, valve support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

676434R91

VALVE, control (for service parts refer to "Hydraulic Control Valve")

1шт.

17

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2" tube 90deg. swivel power beyond

1шт.

18

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

BUSHING, reducing pipe

1шт.

19

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

90deg. 5/8" tube to 1/8" pipe 90 deg. return

1шт.

20

676535R11

TUBE

PIPE, power beyond (434 tractor 1966 to 1969) (for service order 1 - 850325C1 pipe 2 - 676045R1 clamps, 1 - 180024 bolt, 1 - 120375 nut, 1 - 120380 washer and 1 - 675282R91 hose)

1шт.

21

676536R11

PIPE, return (434 tractor)

1шт.

21

850356C1

PIPE, return (276 tractor) .625" OD

1шт.

22

676045R1

CLAMP

return tube

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

995218R1

CLAMP

hose

2шт.

24

675306R1

HOSE, return

1шт.

25

675307R1

FITTING

1/2" hose

1шт.

26

NLS

NO LONGER SERVICED

lift housing

1шт.

27

144613

LINE

NIPPLE, lift housing tee

1шт.

28

850326C1

TUBE

PIPE, valve to pump (276 tractor) (434 tractor, Serial Range: 1969-1972)

1шт.

29

675846R91

HOSE ASSY.

HOSE, valve to pump pipe (276 tractor) (434 tractor, Serial Range: 1969-1972)

1шт.

30

675282R91

HOSE

power beyond (276 tractor) (434 tractor, Serial Range: 1969-1972)

1шт.

31

850357C1

PIPE, power beyond (276 tractor)

1шт.

31

850325C1

TUBE,.5" OD

PIPE, power beyond (434 tractor 1969 to 1972)

1шт.

32

675045R1

CLAMP, valve to pump and power beyond (434 tractor, Serial Range: 1969-1972)

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

315328R1

CLAMP, power beyond (276 tractor)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

379045R1

CLAMP

hyd return tube (276 tractor)

2шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

705519R1

RING

housing

1шт.

36

705520R1

NUT,0.69" Length

hydraulic housing

1шт.

37

141621

ELBOW,90 Degree, 3/4" NPT Street

90deg. street (434 tractor) (for use to avoid seat interference)

1шт.
