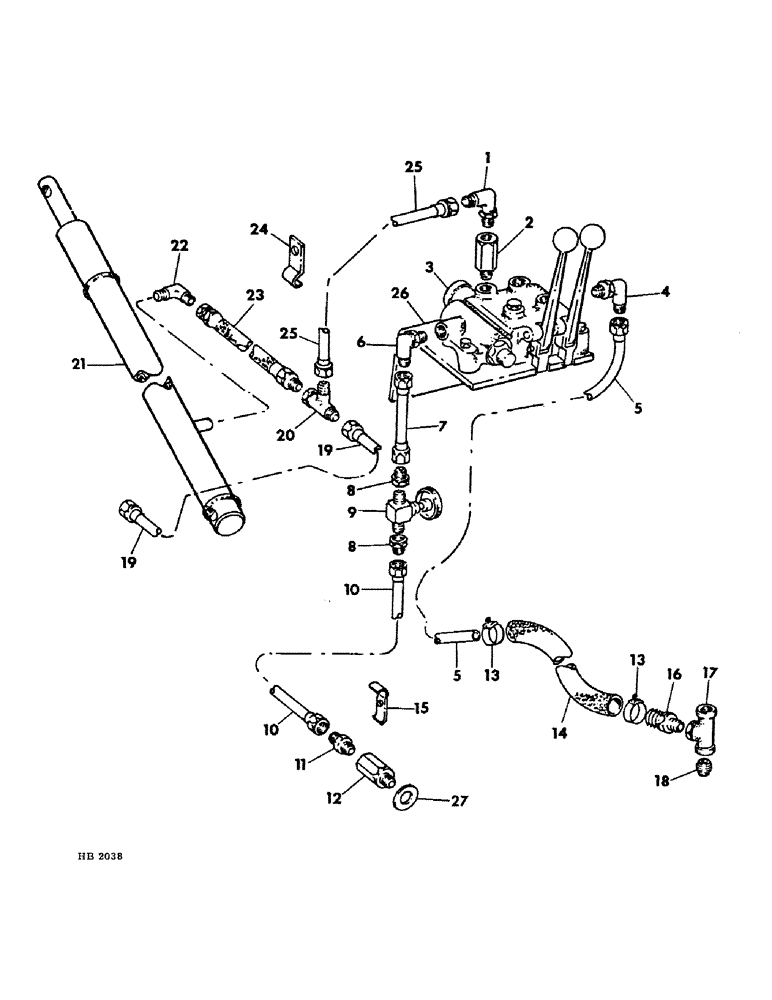

Запчасти Case IH 1501 (A-16) - HYDR SYSTEM, TRACTOR TO VALVE AND BOOM HYDR, MODEL B414 1965 TO 1966, MODEL B275 1965 TO 1970

1

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

W/NUT, 1/2" tube 90 deg. in control valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

elbow

1шт.

2

675453R91

VALVE

RESTRICTOR, control valve

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

restrictor

1шт.

3

675433R91

VALVE, control (for service parts refer to "Hydraulic Control Valve")

1шт.

4

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

W/NUT, 5/8 tube to 5/8 straight 90 deg. return

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

5

675435R11

PIPE, return valve to lift housing

1шт.

6

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

W/NUT, 1/2" tube to 5/8" straight 90 deg. valve inlet port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

7

675440R91

PIPE, control valve to cut-off 1" OD, 6.25" Length

1шт.

8

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 1/2" tube to 3/8 pipe

2шт.

9

675275R91

VALVE

cut off

1шт.

10

675442R91

PIPE, valve to lift housing (B414 tractor)

1шт.

10

675441R91

PIPE, valve to lift housing (B275 tractor)

1шт.

11

383118R1

FITTING

CONNECTOR, 1/2 pipe to 1/2" tube (between pipe and adapter)

1шт.

12

675278R1

ADAPTER

lift housing

1шт.

13

995218R1

CLAMP

hose

2шт.

14

675306R1

HOSE, return

1шт.

15

706405R1

CLAMP

lift housing pipe

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

675307R1

FITTING

1/2" hose

1шт.

17

NLS

NO LONGER SERVICED

return

1шт.

18

NLS

NO LONGER SERVICED

NIPPLE, 3/4 close pipe

1шт.

19

675438R91

PIPE, boom cylinder LH

1шт.

20

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

21

675280R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

22

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

in cylinder

2шт.

23

675282R91

HOSE

16" boom cylinder

2шт.

24

675274R1

CLAMP, pipe LH

1шт.

24

675473R1

CLAMP, pipe RH

1шт.

25

675439R91

PIPE, Serial Range: valve-tee

1шт.

26

675434R1

BRACKET, valve support

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

704337R1

SEALING WASHER

WASHER, adapter

1шт.
