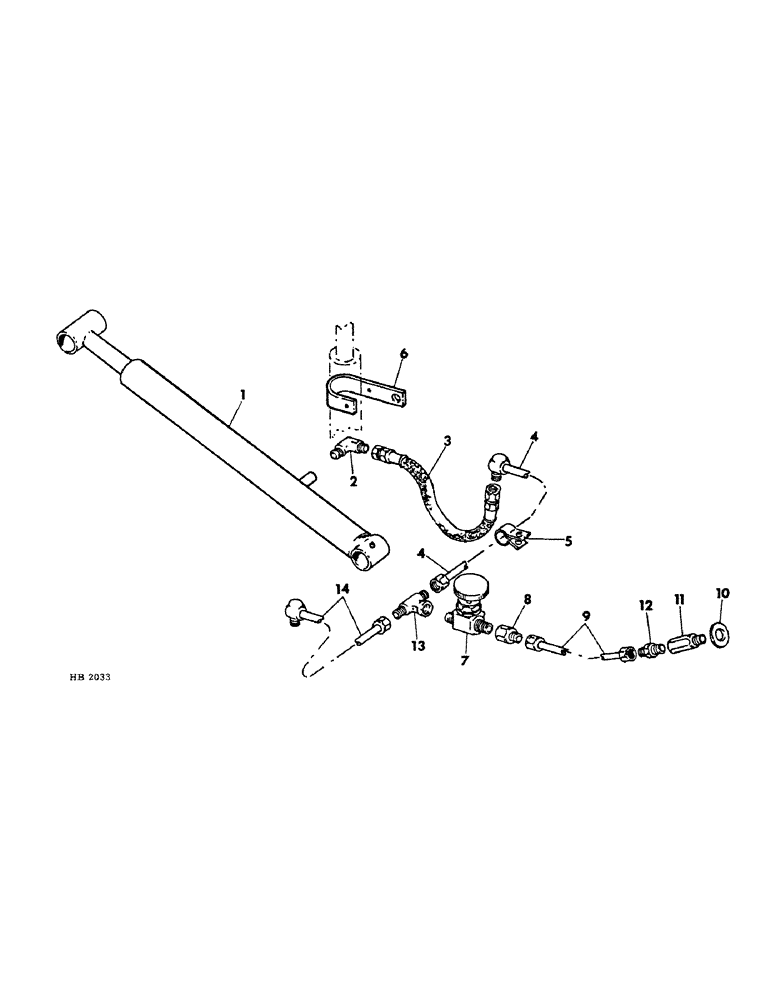

Запчасти Case IH 1501 (A-11) - BOOM LIFT HYD, MECH BCKT CNTRL, MODEL 424 1965 TO 1966

1

675694R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

2

637865R1

ELBOW, 1/2" tube to 3/8" pipe 90 deg. in cylinder port

2шт.

3

675846R91

HOSE ASSY.

HOSE, 24" boom cylinder

2шт.

4

675801R91

PIPE, boom cylinder RH

1шт.

5

446077R91

CLIP

CLAMP, pipe

2шт.

6

851637C1

SUPPORT

boom lift cylinder lock

2шт.

JA623

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3" std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

7

675275R91

VALVE

cut-off

1шт.

8

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 1/2" tube to 3/8" pipe on cut-off valve

1шт.

9

675807R91

PIPE, to lift housing

1шт.

10

704337R1

SEALING WASHER

WASHER, adapter

1шт.

11

675278R1

ADAPTER

lift housing

1шт.

12

383118R1

FITTING

CONNECTOR, 1/2" tube to 1/2" pipe at adapter

1шт.

13

9403060

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

cylinder pipe

1шт.

14

675800R91

PIPE, boom cylinder LH

1шт.
