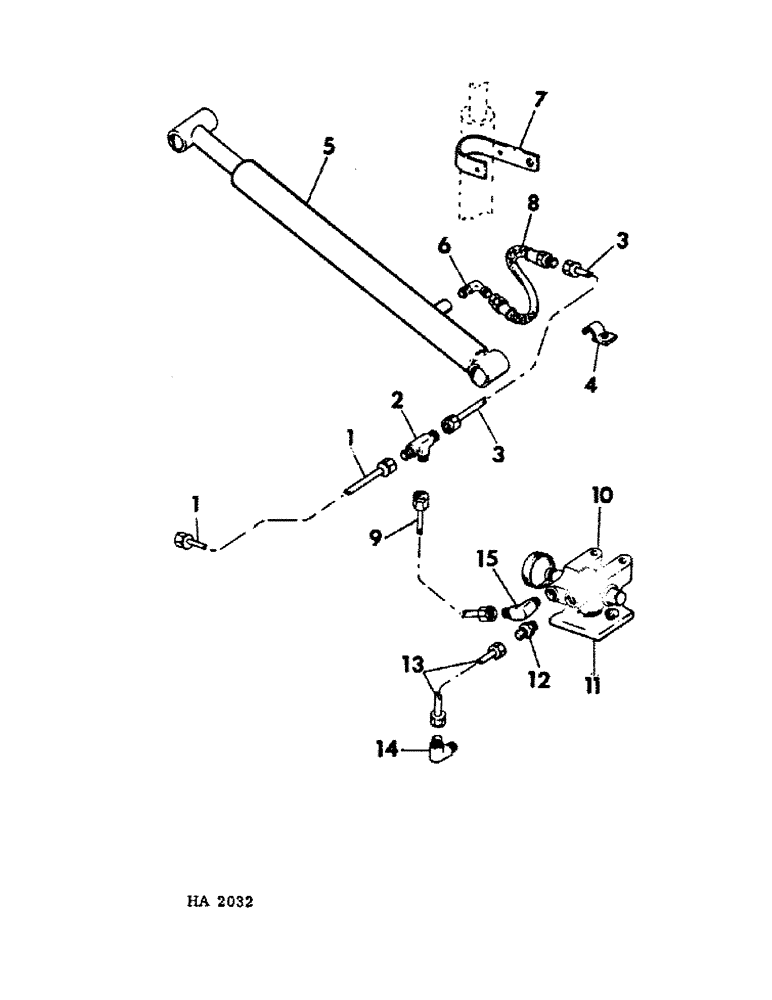

Запчасти Case IH 1501 (A-10) - BOOM LIFT HYD, MECH BCKT CNTRL, MODEL MF35 & MF50 1965 TO 1968

1

675803R91

PIPE, boom cylinder LH

1шт.

2

9402982

TEE,3/4"-16, 37 Degree

cylinder

1шт.

3

675804R91

PIPE, boom cylinder RH

1шт.

4

341670R1

CLAMP, pipe

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

675694R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

6

637865R1

ELBOW, 1/2" tube to 3/8" pipe 90deg. in cylinder port

2шт.

7

675796R1

SUPPORT, boom lift cylinder lock

2шт.

JA623

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3" std-hd-dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

8

675828R91

SEAL KIT

HOSE, 16" boom cylinder

2шт.

9

675811R91

PIPE, tee to diverter valve

1шт.

10

471491R1

VALVE, diverter

1шт.

11

675813R91

MANIFOLD, diverter valve

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

manifold

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

12

383118R1

FITTING

CONNECTOR, 1/2" tube to 1/2" pipe at diverter valve

1шт.

13

675819R91

PIPE, return

1шт.

14

637865R1

ELBOW, 1/2" tube to 3/8 pipe 90 deg. return pipe

1шт.

15

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

1/2" tube to 1/2" pipe 90 deg. in diverter valve

1шт.
