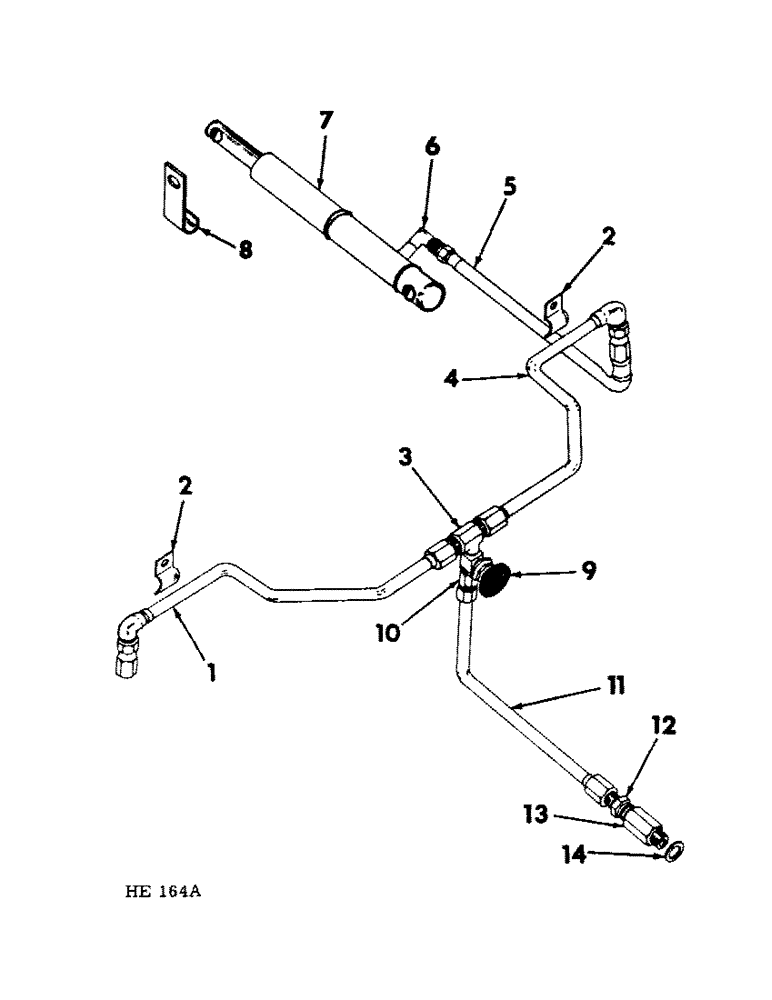

Запчасти Case IH 1501 (A-09) - BOOM LIFT HYD, MECH BCKT CNTRL MODEL B414 1967-72, MODEL 434 1966-72, MODEL 276 1969-72

1

676523R11

PIPE, boom cylinder LH (434 and 276 tractors) 1" OD, 14.7, 11.9" Length

1шт.

1

676552R11

PIPE, boom cylinder LH (B414 tractor) 1" OD, 14.6, 11.6" Length

1шт.

2

446077R91

CLIP

CLAMP, pipe

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

9403060

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

cylinder pipe

1шт.

4

676524R11

PIPE, boom cylinder RH (434 and 276 tractors) 1" OD, 17.9, 11.9" Length

1шт.

4

676553R11

PIPE, boom cylinder RH (B414 tractor) 1" OD, 19, 11.6" Length

1шт.

5

675846R91

HOSE ASSY.

HOSE, 24" boom cylinder

2шт.

6

637865R1

ELBOW, 1/2" tube to 3/8" pipe 90 deg. in cylinder port

2шт.

7

675280R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

8

851637C1

SUPPORT

boom lift cylinder lock

2шт.

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4" std-hd dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, 1/8" Q.A.

2шт.

9

675275R91

VALVE

cut-off

1шт.

10

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 1/2" tube to 3/8" pipe on cut-off valve

1шт.

11

676525R11

PIPE, valve to housing (434 tractor) 1" OD, 8.5, 4" Length

1шт.

11

676556R11

PIPE, valve to housing (B414 tractor) 1" OD, 8.7, 4.2" Length

1шт.

11

850348C1

PIPE, valve to housing (276 tractor)

1шт.

12

383118R1

FITTING

CONNECTOR, 1/2" tube to 1/2" pipe between pipe and adapter

1шт.

13

675278R1

ADAPTER

(at hyd lift housing)

1шт.

14

704337R1

SEALING WASHER

WASHER, adapter

1шт.
