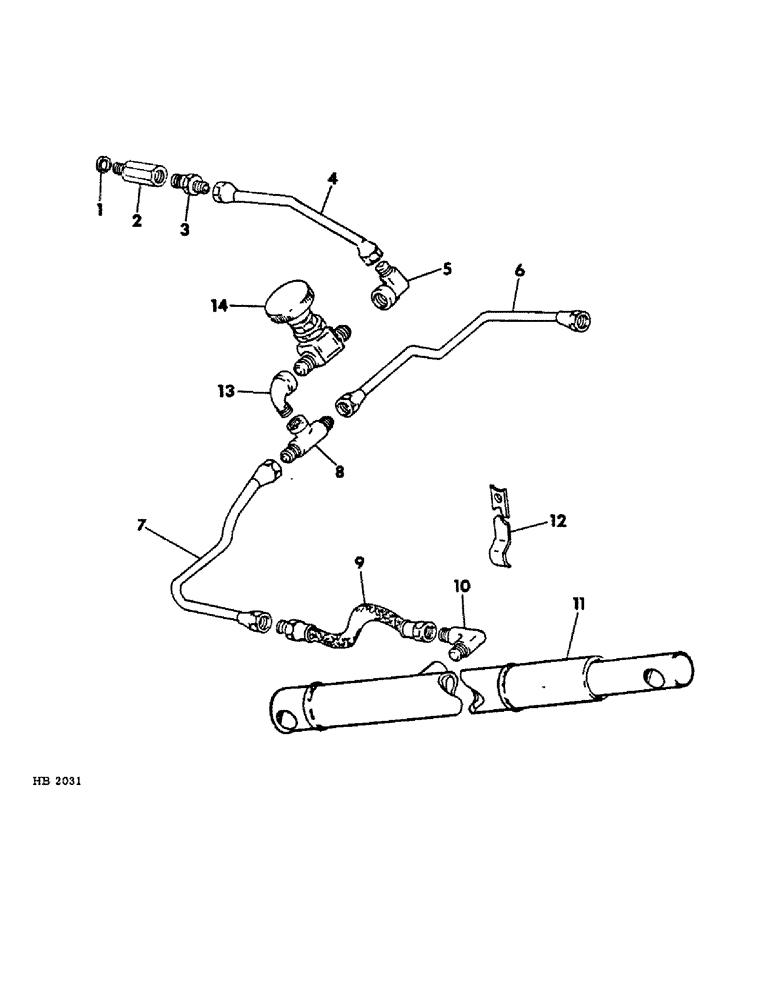

Запчасти Case IH 1501 (A-08) - BOOM LIFT HYD, HYD BCKT CNTRL, MDL B275 & B414 1964-65, MECH BCKT CNTRL MDL B275 1964-70, AND

1

704337R1

SEALING WASHER

WASHER, adapter

1шт.

2

675278R1

ADAPTER

lift housing

1шт.

3

383118R1

FITTING

CONNECTOR, 1/2" tube to 1/2" pipe

1шт.

4

675277R91

PIPE, valve to lift housing (for B414 tractor) 1" OD, 8.4, 2.2" Length

1шт.

4

675276R91

PIPE, valve to lift housing (for B275 tractor) 1" OD, 8.2, 1.6" Length

1шт.

5

9402904

ELBOW, 1/2" tube to 3/8" pipe 90deg.

1шт.

6

675272R91

PIPE, boom cylinder LH

1шт.

7

675273R91

PIPE, boom cylinder RH

1шт.

8

9403060

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

cylinder pipe

1шт.

9

675282R91

HOSE

16" boom cylinder

2шт.

10

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

1/2" tube to 3/8" pipe 90 deg. in cylinder port

2шт.

11

675280R91

CYLINDER, (for service parts refer to "Boom Lift Cylinder")

2шт.

12

675274R1

CLAMP, pipe LH and RH

2шт.

13

111316

ELBOW

3/8" - 90 deg. in tee

1шт.

14

675275R91

VALVE

cut-off

1шт.
