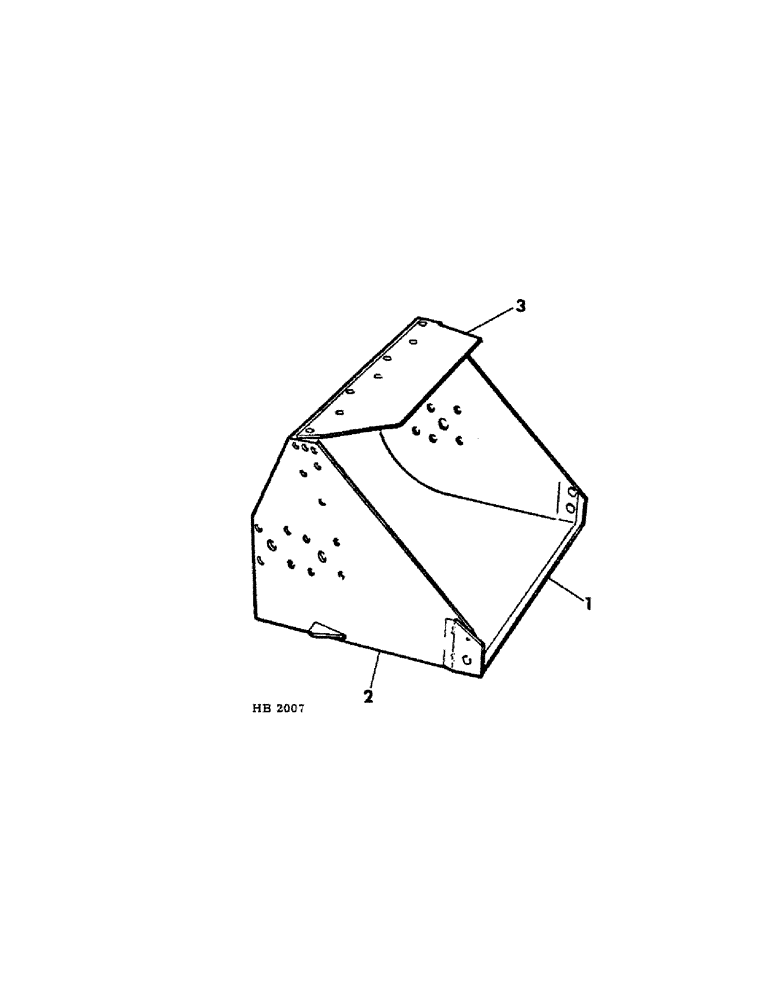

Запчасти Case IH 1501 (A-06) - MATERIAL BUCKET AND SPILL GUARD

1

652333R1

BLADE

EDGE, front cutting (welded)

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1" truss hd

17шт.

2

675310R91

BUCKET, material (mechanical dump only) (for tractors B414, B275 MF35, MF50, 424, 434, 276 and 444 U.S.A. model) (includes 652333R1 edge)

1шт.

2

675829R91

BUCKET, material (hydraulic dump only) (for tractors MF35, MF50, 424 and 444 U.S.A. model) (includes 652333R1 edge)

1шт.

2

BUCKET, material (hydraulic dump only) (for tractors B414, B275, 434, 276) (includes 1 - 652333R1 edge) (for service order on machine order form)

1шт.

3

675330R1

GUARD, spill

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.
