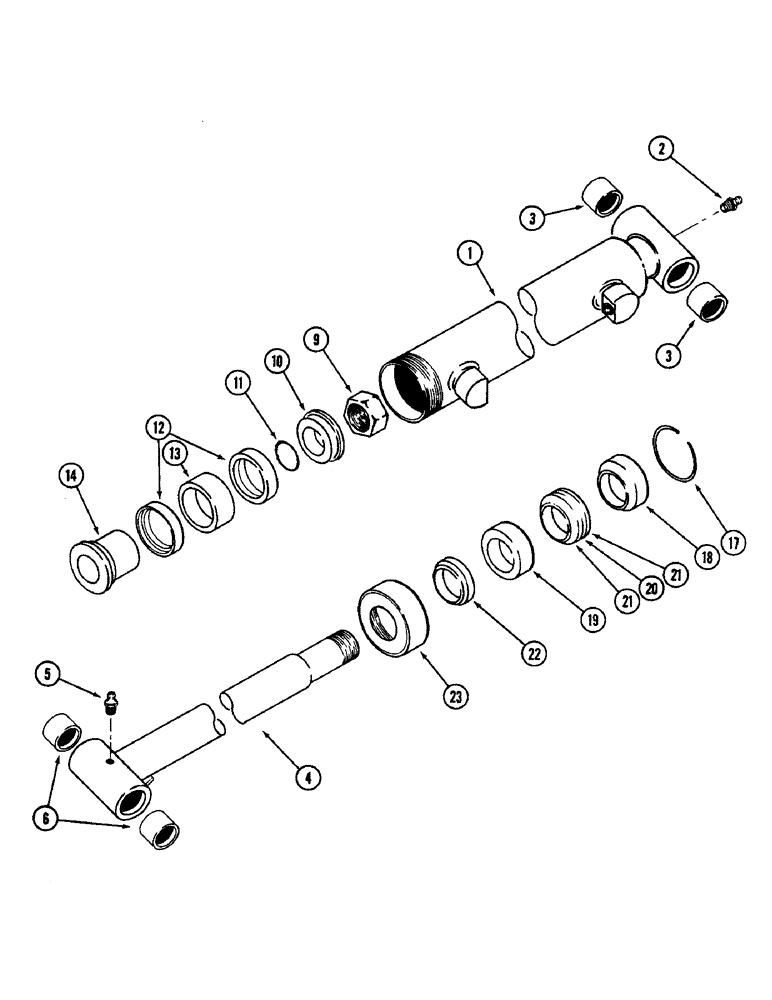

Запчасти Case IH 10QA (8-10) - BUCKET CYLINDER, 10QA LOADER, 1-3/4 X 20 INCH (08) - HYDRAULICS

1969379C1

CYLINDER

ASSEMBLY bucket, Includes: Ref. 1 - 23

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY bucket cylinder (Order 1969379C1), Includes: Ref. 2 and 3

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

1973056C1

BUSHING

end

2шт.

4

1969400C1

ROD

ASSEMBLY cylinder, 1" rod, Includes: Ref. 5 and 6

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

6

1973056C1

BUSHING

end

2шт.

9

19638R1

LOCK NUT,3/4"-16, GB

hex lock, 3/4 inch NF

1шт.

10

1960662C1

PISTON

END

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

14

1960657C1

PISTON

cylinder

1шт.

17

1960663C1

CLIP

WIRE retaining

1шт.

18

1960664C1

PACKING

GUIDE packing, male

1шт.

19

1958493C1

PACKING

GUIDE packing, female

1шт.

20

NSS

NOT SOLD SEPARAT

V-SEAL rubber

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

21

NSS

NOT SOLD SEPARAT

V-SEAL fiber

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

22

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

23

1960656C1

NUT

cartridge

1шт.

1960258C1

SEAL KIT

seal, Includes: Ref. 11, 12, 13, 20, 21 and 22

1шт.
