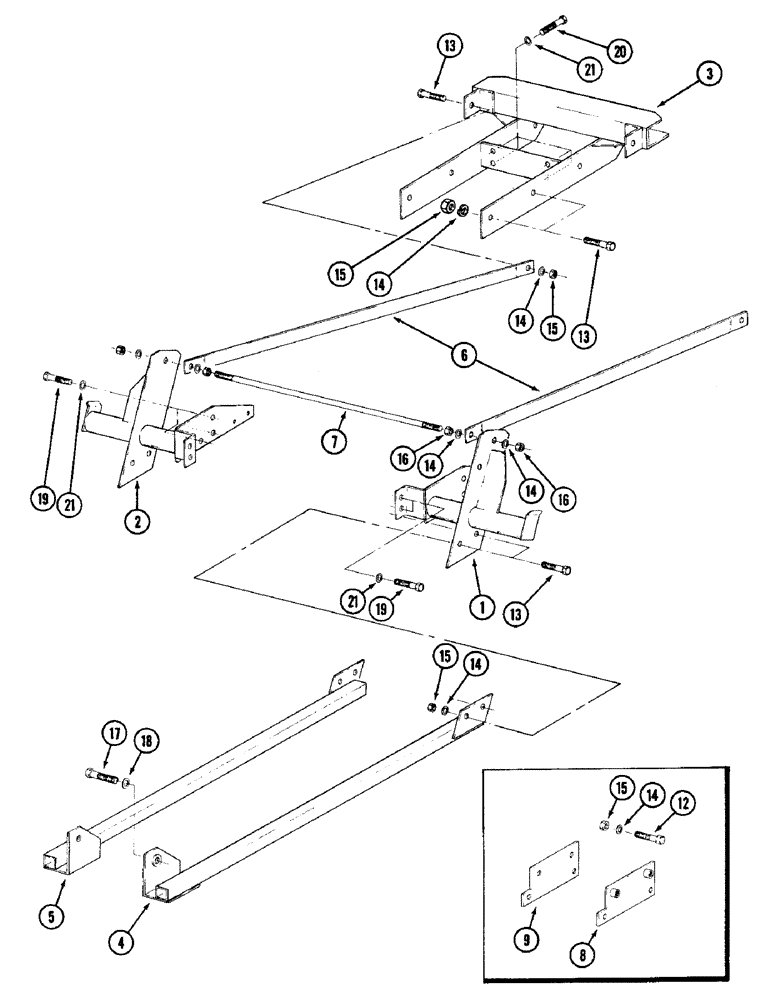

Запчасти Case IH 10QA (9-12) - MOUNTING SUPPORTS AND RAILS, 10QA LOADER (09) - CHASSIS/ATTACHMENTS

1

1969374C1

FRAME

SUPPORT boom mounting, right rear

1шт.

2

1969373C1

FRAME

SUPPORT boom mounting, left rear

1шт.

3

1969375C1

FRAME

SUPPORT boom mounting, front

1шт.

4

1969372C1

RAIL

mounting, right rear

1шт.

5

1969371C1

RAIL

mounting, left rear

1шт.

6

1969356C1

BAR

RAIL mounting, front

2шт.

7

1969277C1

ROD

tie

1шт.

8

1969377C1

BRACKET

mower, right

1шт.

9

1969376C1

BRACKET

mower, left

1шт.

12

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

10шт.

14

492-11062

BEARING WASHER,5/8"

18шт.

15

425-1010

NUT,5/8"-11, G5

14шт.

16

425-1110

NUT,5/8"-18, G5

4шт.

17

514-1209

BOLT,Hex, M20 x 1.5 x 50mm, Cl 8.8, Full Thd

hex, 20 - 1.5 x 50 mm

2шт.

18

892-11020

LOCK WASHER,M20

2шт.

19

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

hex, 14 x 35 mm

10шт.

20

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, 14 - 1.5 x 35 mm

4шт.

21

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

14шт.
