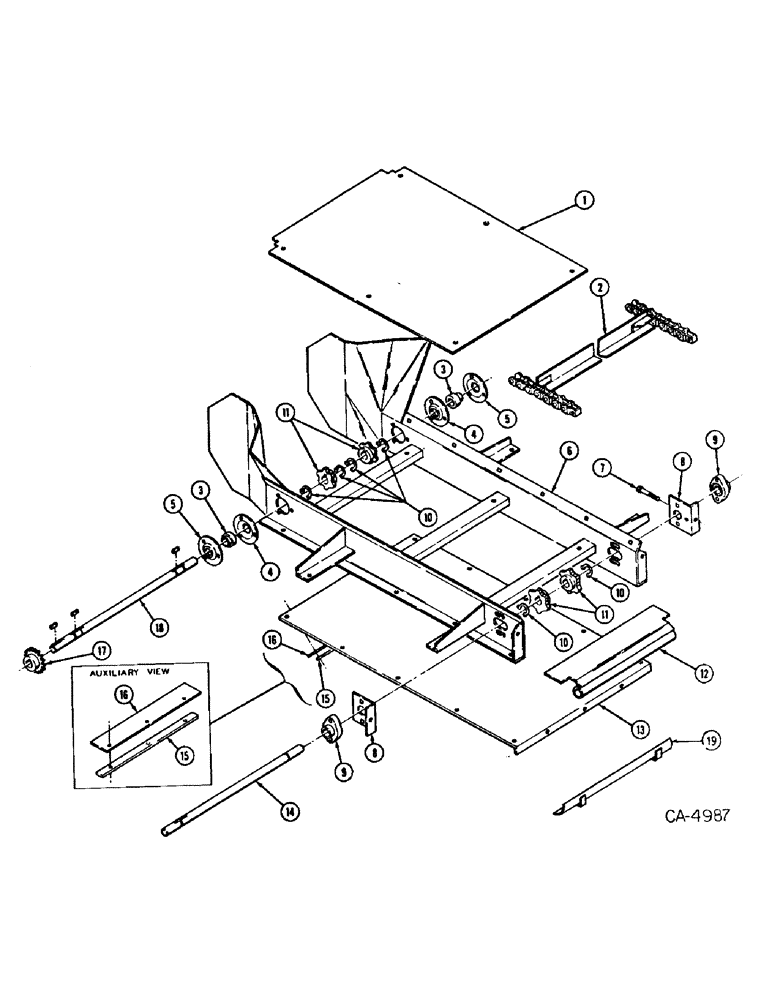

Запчасти Case IH 750 (E-09) - CONVEYOR SUB ASSEMBLY

1

64250C1

FLOOR, board

1шт.

2

64251C1

CHAIN & SLAT ASSY

1шт.

3

666589R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING

2шт.

455102R21

COLLAR

2шт.

4

937517R1

FLANGE

TTE, bearing

2шт.

5

937518R91

FLANGE

TTE, bearing w/fitting

2шт.

6

64252C1

FRAME, conveyor

1шт.

7

623056R1

BOLT, 3/8 x 3 adj

2шт.

8

64253C1

SUPPORT, bearing

2шт.

9

64326C91

BEARING W/FLANGE

2шт.

10

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

6шт.

11

64254C1

SPROCKET

4шт.

12

64255C1

GUIDE, slat

1шт.

13

64256C1

PLATE, conveyor

1шт.

14

64257C1

SHAFT, conveyor idler

1шт.

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 x 1/4 x 3/4 sq parallel

1шт.

15

64258C1

BAR, seal

1шт.

16

64259C1

STRIP, seal

1шт.

17

64324C1

SPROCKET ASSY.

SPROCKET, 16T

1шт.

192450

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 set

2шт.

18

64260C1

SHAFT, conveyor

1шт.

Q53

KEY,1/4" Sq x 1", Par

3шт.

19

64261C1

SUPPORT, conveyor, liner

1шт.
