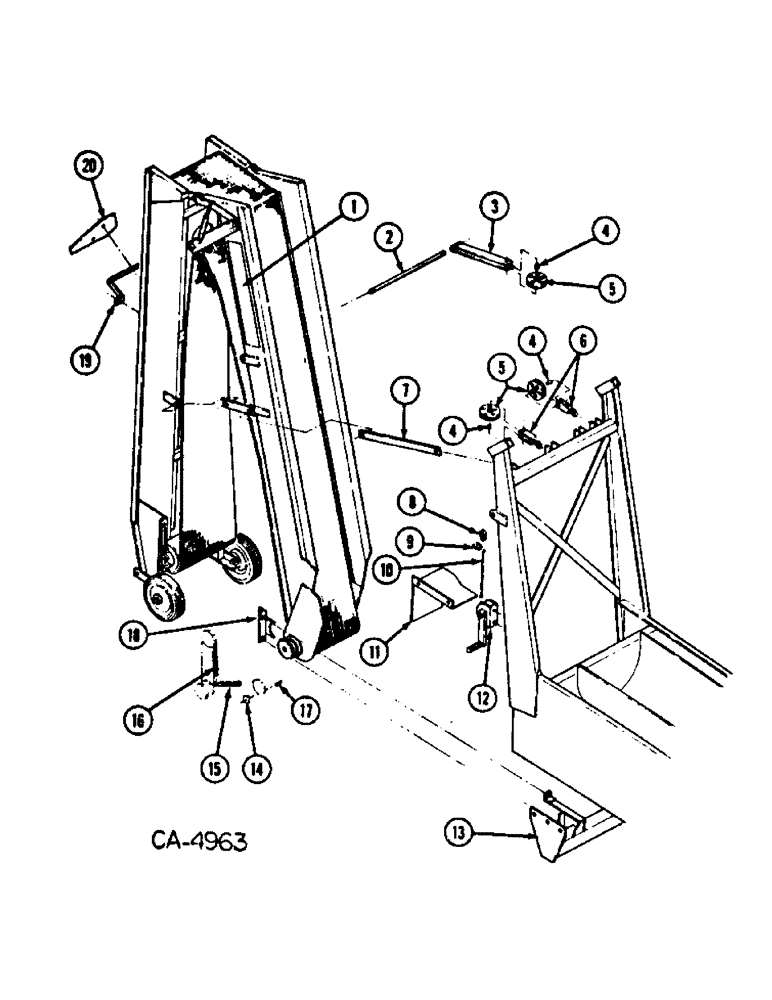

Запчасти Case IH 750 (E-08) - ELEVATOR ATTACHING PARTS

1

PRODUCT GRAPHIC, not serviced separately, order package, 63868C91

1шт.

2

64283C1

ROD, pulley bracket

1шт.

3

64284C1

BRACKET, pulley

2шт.

4

64352C1

SPACER

4шт.

5

64077C1

PULLEY ASSY

4шт.

6

64076C1

BRACKET, pulley

2шт.

7

64285C1

BAR, tie

2шт.

8

61706C1

CUP

THIMBLE, 5/16

1шт.

9

552230R91

CLAMP

14 in. cable

2шт.

10

64286C1

CABLE

1шт.

11

64287C1

SUPPORT, shield

1шт.

12

64079C1

WINCH

1шт.

13

64288C1

SUPPORT, elevator

1шт.

14

631905R91

SPROCKET

idler

1шт.

15

CHAIN, roller, use 45 links from a 100 ft roll marked 1740D & 1 connecting link 1310D

1шт.

16

CHAIN, roller, use 41 links from a 10 ft roll marked 1740D & 1 connecting link 1310D

1шт.

17

64358C1

SPACER

1шт.

18

64289C1

SUPPORT, retainer

1шт.

19

NOT SERVICED SEPARATELY

1шт.

20

NOT SERVICED SEPARATELY

1шт.
