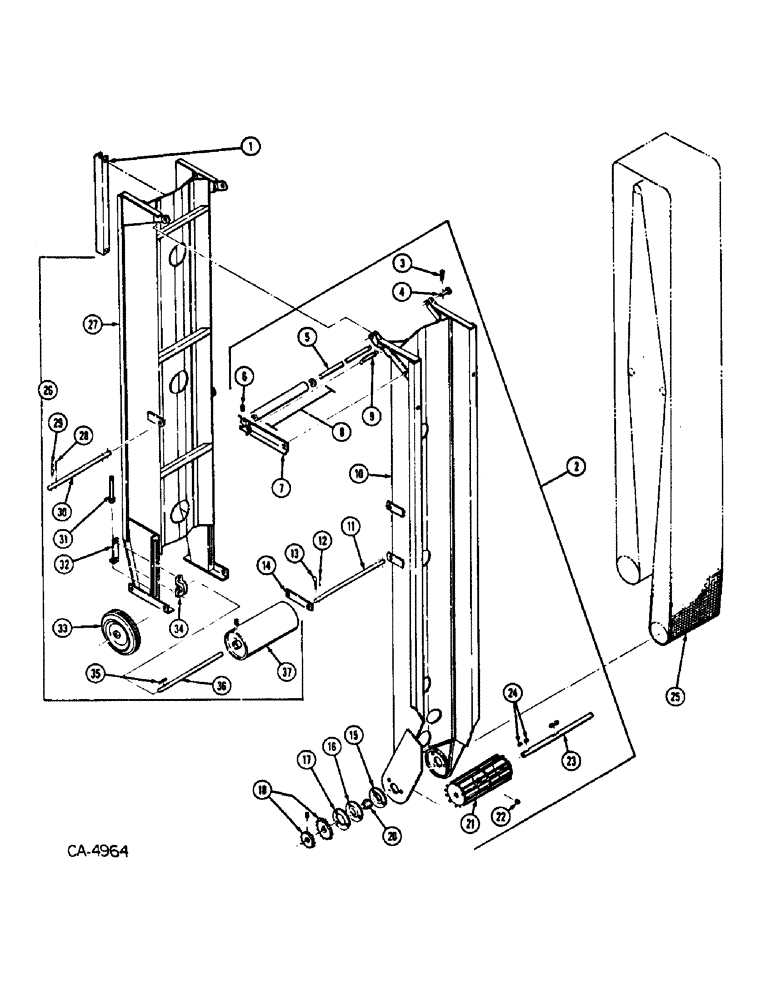

Запчасти Case IH 750 (E-06) - ELEVATOR ASSEMBLY

1

64291C1

CHANNEL, elevator

2шт.

2

NOT SERVICED AS AN ASSEMBLY

1шт.

3

NOT SERVICED SEPARATELY

1шт.

4

64321C1

PIN, headed

2шт.

5

64292C1

ROD, idler

1шт.

6

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

7

64293C1

BRACKET, idler

1шт.

8

64294C91

PULLEY ASSY, idler

1шт.

64327C91

BEARING, ball

2шт.

9

64295C1

SPRING

2шт.

10

64296C1

ELEVATOR, lower

1шт.

11

64297C1

PIPE

1шт.

12

NOT SERVICED SEPARATELY

1шт.

13

407208R1

PACKAGE

PIN, clip

4шт.

14

64298C1

BAR, link

2шт.

15

470745R91

FLANGED BEARING

FLANGE, bearing

2шт.

16

470746R1

FLANGE

bearing

2шт.

17

64299C1

RETAINER

2шт.

18

64323C1

SPROCKET 16T

2шт.

19

NOT SERVICED SEPARATELY

1шт.

20

470743R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

2шт.

557995R11

COLLAR

lock

2шт.

21

64300C1

PULLEY, slat

1шт.

22

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 set

2шт.

23

64301C1

SHAFT, elevator drive

1шт.

24

Q53

KEY,1/4" Sq x 1", Par

4шт.

25

64302C91

BELT, CONVEYOR 18.00" W x 534.00" L 18.00" W x 534.00" L

1шт.

64303C1

CABLE, pin

1шт.

64322C1

BELT, 3 ft section

1шт.

64304C1

KIT, lacing

1шт.

26

NOT SERVICED SEPARATELY

1шт.

27

64305C1

ELEVATOR, upper

1шт.

28

NOT SERVICED SEPARATELY

1шт.

29

NOT SERVICED SEPARATELY

1шт.

30

64306C1

PIPE

1шт.

31

NOT SERVICED SEPARATELY

1шт.

32

64307C1

SUPPORT, adjusting bar

2шт.

33

64308C1

WHEEL ASSY

2шт.

34

64325C91

BEARING, pillow block

2шт.

35

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel

1шт.

36

64309C1

SHAFT, idler pulley

1шт.

37

64310C1

PULLEY, idler

1шт.
