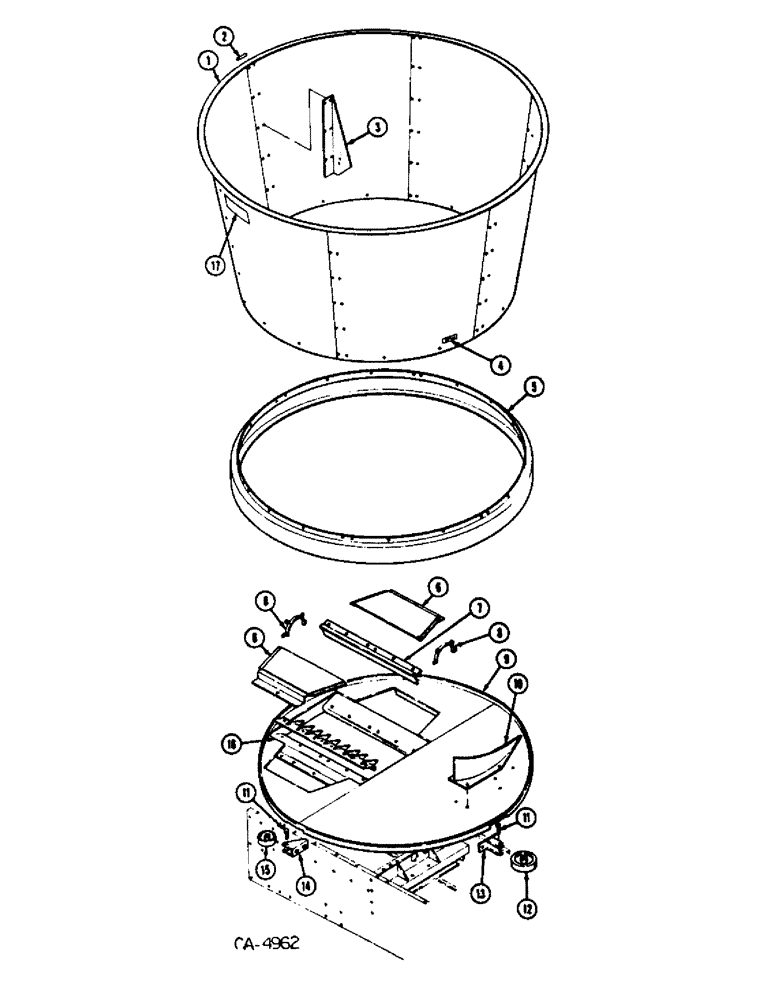

Запчасти Case IH 750 (E-05) - TUB AND ATTACHING PARTS

1

64240C1

SIDE, tube

6шт.

2

64009C1

SPACER, connection, plug

6шт.

3

64241C1

SUPPORT, baffle

2шт.

4

PRODUCT GRAPHIC, not serviced separately, order package, 63869C91

1шт.

5

64242C1

RETAINER, tub drive

1шт.

6

64243C1

DOOR, floor

2шт.

7

64244C1

SUPPORT, hold down screen

1шт.

8

64245C1

RING, anti wrap

2шт.

9

64246C1

BASE, floor

1шт.

10

64247C1

GUIDE

1шт.

11

63921C1

BOLT, roller

3шт.

12

64015C91

ROLLER ASSY

1шт.

64016C1

WHEEL, roller

1шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R91

BEARING

2шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

2шт.

64333C1

SPACER, tube

1шт.

13

64248C1

SUPPORT, roller

1шт.

14

64032C1

BRACKET, roller

2шт.

15

63922C91

ROLLER ASSY

6шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R91

BEARING

2шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

2шт.

64333C1

SPACER, tube

1шт.

63923C1

WHEEL

1шт.

16

64249C1

GRATE, Dewumper

1шт.

17

PRODUCT GRAPHIC, not serviced separately, order package, 63869C91

1шт.
