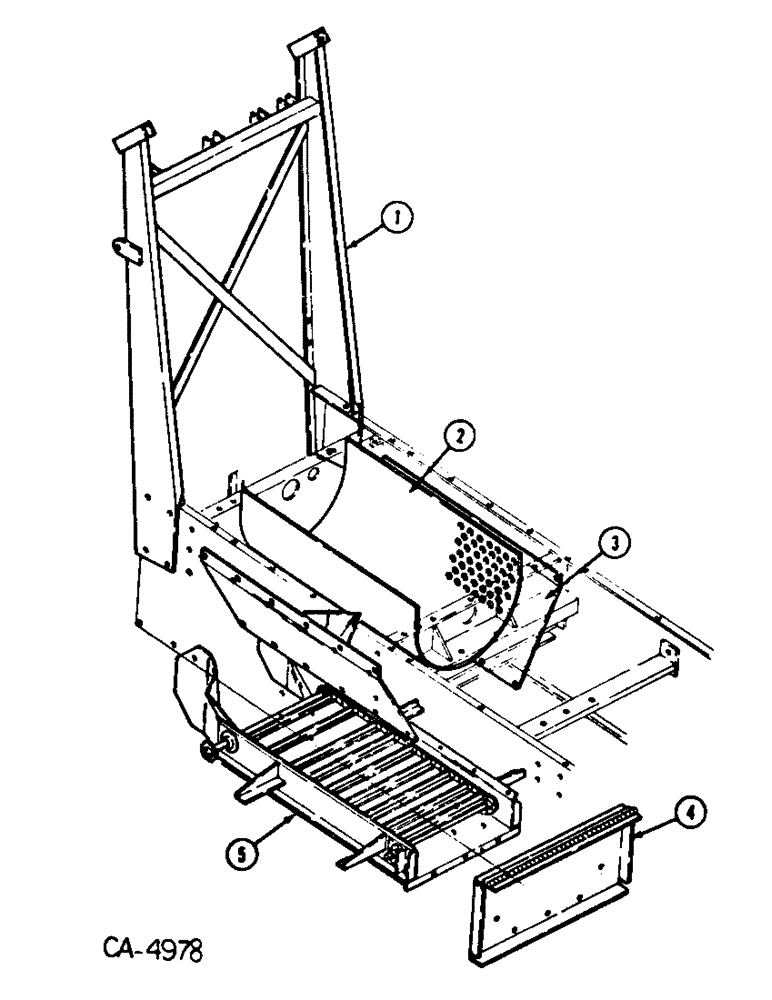

Запчасти Case IH 750 (E-04) - MAIN FRAME ATTACHING PARTS

1

64262C1

SUPPORT, elevator cable

1шт.

2

64263C1

SCREEN, hammermill 1/4

1шт.

2

64264C1

SCREEN, hammermill 5/16

1шт.

2

64265C1

SCREEN, hammermill 3/8

1шт.

2

64266C1

SCREEN, hammermill 7/16

1шт.

2

64267C1

SCREEN, hammermill 1/2

1шт.

2

64268C1

SCREEN, hammermill 5/8

1шт.

2

64269C1

SCREEN, hammermill 3/4

1шт.

2

64270C1

SCREEN, hammermill 1

1шт.

2

64271C1

SCREEN, hammermill 1-1/4

1шт.

2

64272C1

SCREEN, hammermill 1-1/2

1шт.

2

64273C1

SCREEN, hammermill 2

1шт.

2

64274C1

SCREEN, hammermill 2-1/2

1шт.

2

64275C1

SCREEN, hammermill 3

1шт.

2

64276C1

SCREEN, hammermill 4

1шт.

2

64277C2

SCREEN, rectangular 1-1/2 x 4-3/4

1шт.

2

64278C2

SCREEN, rectangular 2 x 4-3/4

1шт.

2

64279C2

SCREEN, bar 3 x 4-3/4

1шт.

2

64280C1

SCREEN, bar weldment

1шт.

3

64281C1

SUPPORT, hopper, side

2шт.

4

64282C1

DOOR, clean out

1шт.

5

CONVEYOR ASSEMBLE, see conveyor sub assembly

1шт.
