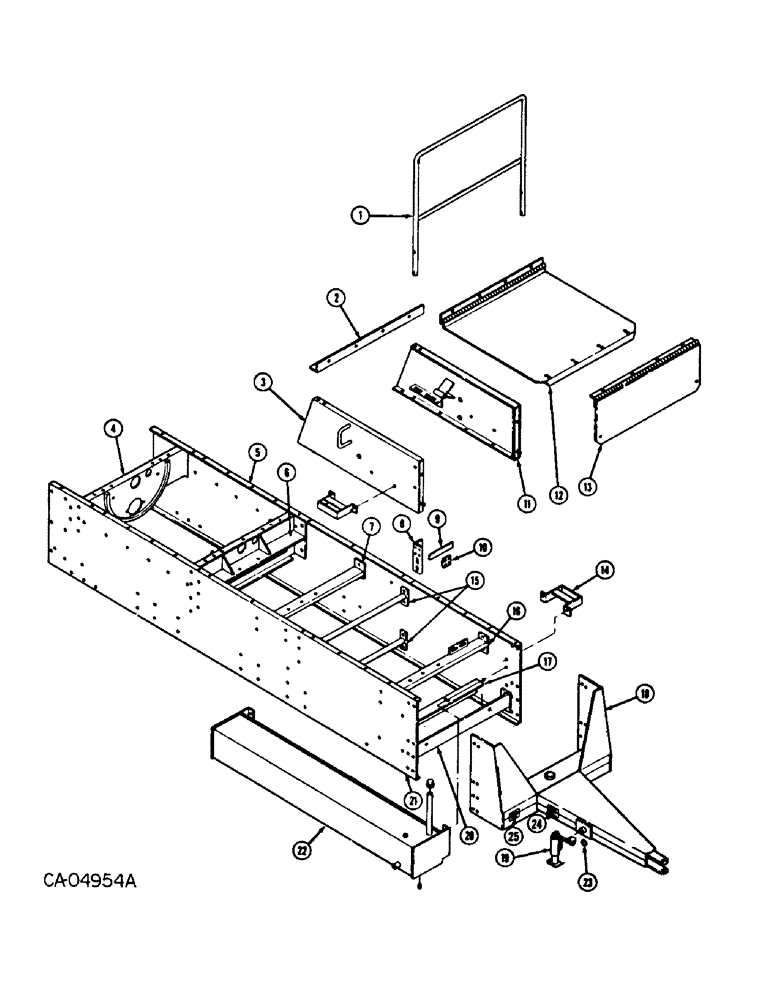

Запчасти Case IH 750 (E-02) - MAIN FRAME

1

64123C1

RAIL, front hand

1шт.

2

64124C1

ANGLE, deck hold down

1шт.

3

64126C1

PANEL, RH, frame

1шт.

4

64127C1

SUPPORT, rear rotor weld

1шт.

5

64128C1

FRAME, main LH

1шт.

6

64130C1

SUPPORT, front rotor weld

1шт.

7

64131C1

SUPPORT, rear weld bearing

1шт.

8

64132C1

SUPPORT

1шт.

9

64133C1

BAR, scraper

1шт.

10

64134C1

SUPPORT, clamp

1шт.

11

64125C1

PANEL, LH, frame

1шт.

12

64135C1

PLATE, top deck weld

1шт.

13

64136C1

PLATE, front deck weld

1шт.

14

63907C1

STEP, weld

6шт.

15

64137C1

BRACE, center frame weld

2шт.

16

64138C1

SUPPORT, front bearing weld

1шт.

17

64139C1

ANGLE, gear box

1шт.

18

64140C1

HITCH, weld

1шт.

19

64360C1

JACK

1шт.

20

64141C1

SUPPORT, gear box weld

1шт.

21

64129C1

FRAME, main RH

1шт.

22

64142C91

TANK, weldment

1шт.

267112R91

CAP

breather

1шт.

444589

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe 1/2 in.

1шт.

23

959928R1

SNAP RING,2.50", Int, #250

RING, 2.313 x .078 snap

1шт.

24

73841C1

PRODUCT GRAPHIC, caution

1шт.

25

73842C1

PRODUCT GRAPHIC, caution

1шт.
