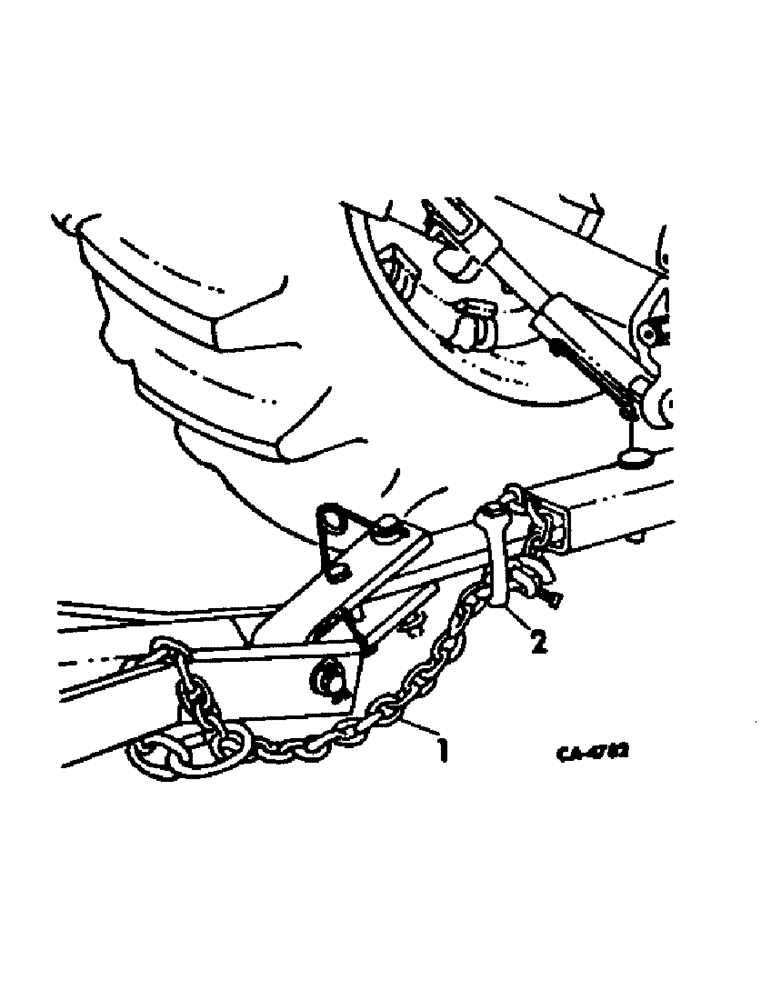

Запчасти Case IH 750 (E-26) - SAFETY CHAIN, PRODUCT GRAPHICS

1

100682C2

CHAIN (AG)

CHAIN, safety

1шт.

2

148558C1

CLEVIS

replaces S9173A

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26512R1

WASHER

.781 x 2.0 x .164 znd

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

1шт.

61913C92

PACKAGE

chain hardware, consists of clevis and attaching hardware

1шт.

63868C92

PACKAGE, product graphics, consists of 1000 RPM (NSS)

1шт.

56630C1

PRODUCT GRAPHIC

CAUTION, keep shields in place, important (NSS), hydraulic fluid level (NSS)

1шт.

63875C1

DANGER

2шт.

175311C1

REFLECTOR

red

2шт.

1000622R7

DECAL

DANGER, warning, tub speed control (NSS), hitch information (NSS)

1шт.

61908C1

DECAL

CAUTION, general warning, hy-tran warranty (NSS)

1шт.

64376C1

CAUTION, (2) tub rotation (NSS), (2) direction of rotation (NSS)

1шт.

63876C1

CAUTION

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
