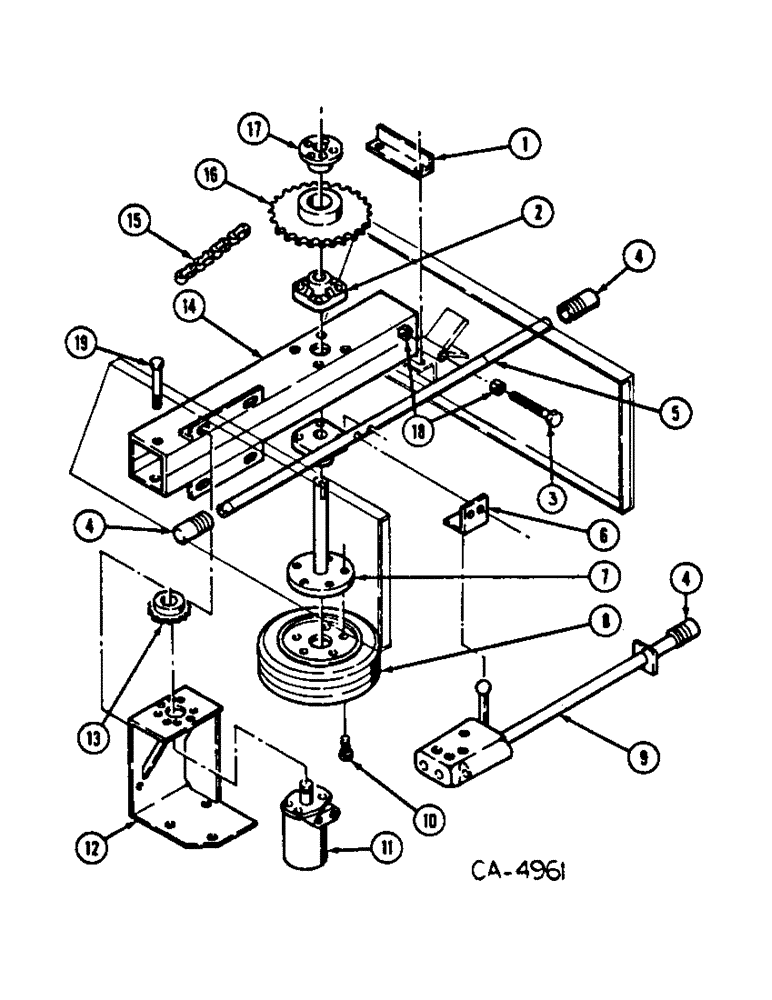

Запчасти Case IH 750 (E-23) - MOTOR AND WHEEL SUPPORT TUBE

1

64204C1

ANGLE, support

1шт.

2

958731R91

BEARING, flange

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

64357C1

BOLT, 1x9

1шт.

4

549657R1

GRIP, hand

3шт.

5

64205C1

PIPE, control

1шт.

6

64206C1

ANGLE, valve handle

1шт.

7

64207C1

SHAFT, wheel hub

1шт.

8

64355C1

WHEEL ASSY, w/tire, tube

1шт.

9

64208C91

VALVE ASSY, hyd

1шт.

10

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

5шт.

11

64002C91

MOTOR ASSY, hydraulic

1шт.

12

64227C1

SUPPORT, motor

1шт.

13

64324C1

SPROCKET ASSY.

SPROCKET, 16T

1шт.

14

64228C1

TUBE, motor

1шт.

15

CHAIN, use 103 links from a 100 ft roll marked 1740D & 1 connecting link 1310D

1шт.

16

64229C1

SPROCKET, 72T

1шт.

17

64001C1

BUSHING

1шт.

18

9849633

NUT,1"-8, G5

2шт.

19

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-16 x 6-1/2 C-Z hex-hd cap

1шт.
