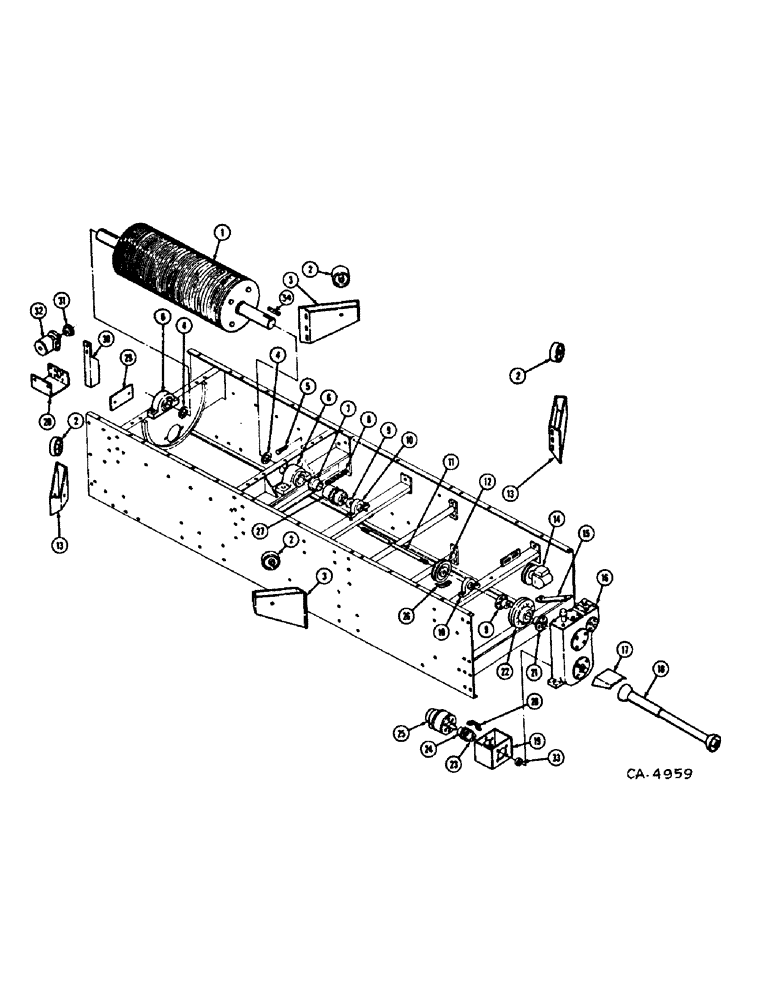

Запчасти Case IH 750 (E-20) - DRIVE PARTS

1

64149C1

ROTOR ASSY, see rotor

1шт.

2

63922C91

ROLLER ASSY

6шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

1шт.

586156R91

BEARING

1шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

1шт.

64333C1

SPACER, tube

1шт.

63923C1

ROLLER

1шт.

3

64156C1

SUPPORT, roller RH

2шт.

4

NOT SERVICED

1шт.

5

625691R1

BOLT, 1/2-13 x 2-1/2 adj full thread

4шт.

6

64158C91

BEARING, pillow block

2шт.

7

63931C1

BUSHING

1шт.

8

CHAIN, use 15 links from a 10 ft roll marked 2135R1 & 1 conn link, 1394D

1шт.

9

64166C1

HUB, coupling

2шт.

10

64167C1

BEARING, pillow block

2шт.

11

64168C1

SHAFT, drive

1шт.

12

64169C1

SHEAVE

1шт.

13

64155C1

SUPPORT, roller LH

2шт.

14

63933C91

GOVERNOR ASSY

1шт.

15

64203C1

SUPPORT, gear box

1шт.

16

63934C91

BOX ASSY, gear

1шт.

17

64202C1

SHIELD, PTO

1шт.

18

P.T.O. ASSEMBLY, see P.T.O. assembly

1шт.

19

64200C1

SUPPORT, pump, mount

1шт.

20

CHAIN NO. 50, use 15 links from a 10 ft roll marked, 1792D & 1 connecting link, 1378D

1шт.

21

63932C1

BUSHING

2шт.

22

64170C1

COUPLING, half shock absorbing

2шт.

23

64199C1

SPROCKET, coupler

1шт.

24

64198C1

SPROCKET, coupler

1шт.

25

64174C91

PUMP ASSY, hydraulic

1шт.

26

592030R1

V-BELT,0.49" W

0.49" W

1шт.

27

63930C1

COUPLING, half

2шт.

28

64172C1

CHANNEL, motor

1шт.

29

64171C1

BAR, cover

1шт.

30

64173C1

ANGLE, motor

1шт.

31

64324C1

SPROCKET ASSY.

SPROCKET, 16T

1шт.

32

64319C1

MOTOR, hydraulic

1шт.

33

64201C1

COLLAR, hub

1шт.

34

64165C1

KEY, special

1шт.

64572C1

BRACE, front

1шт.

64573C1

BRACE, rear

1шт.
