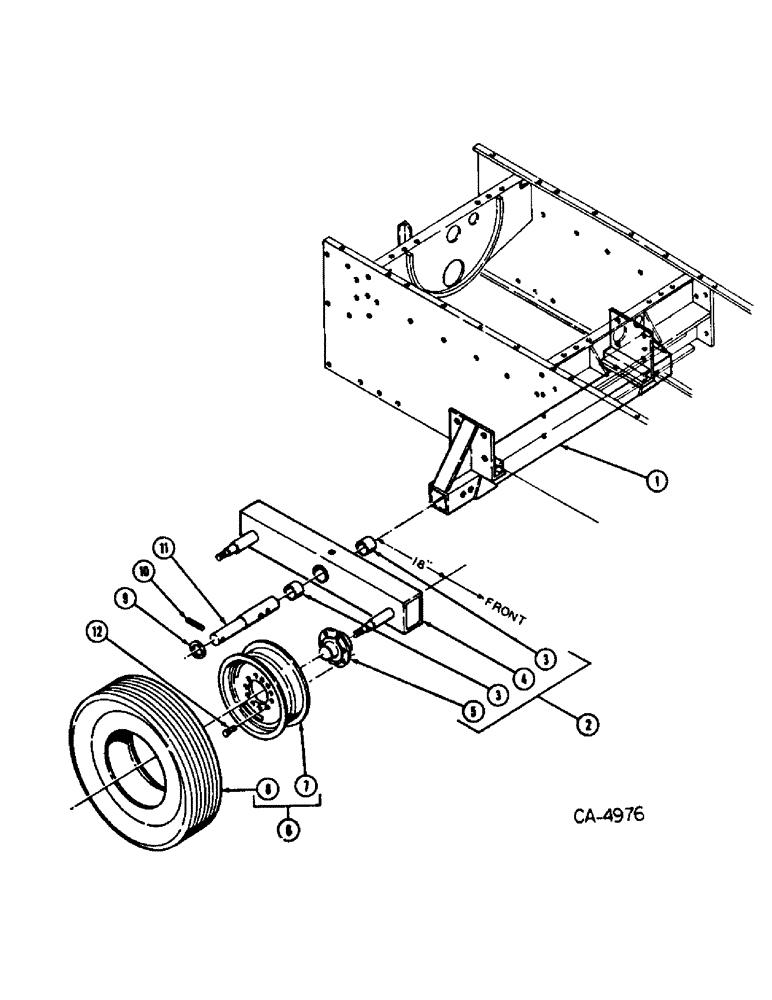

Запчасти Case IH 750 (E-17) - WALKING BEAM ASSEMBLY

1

64143C1

SUPPORT, axle

1шт.

2

64144C91

WALKING BEAM ASSY, RH

1шт.

2

64146C91

WALKING BEAM ASSY, LH

1шт.

3

64145C1

BUSHING

sleeve type

2шт.

4

64501C1

AXLE, walking beam RH

1шт.

4

64505C1

AXLE, walking beam LH

1шт.

5

64318C91

HUB

ASSY

2шт.

6

NOT SERVICED AS AN ASSEMBLY

1шт.

7

64356C1

RIM

WHEEL, 16x6L

4шт.

8

NOT SERVICED SEPARATELY

1шт.

9

64147C1

WASHER, special

2шт.

10

27695R1

PIN,1/2" x 3", Slotted

2шт.

11

64148C1

ROD, pivot

2шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.
