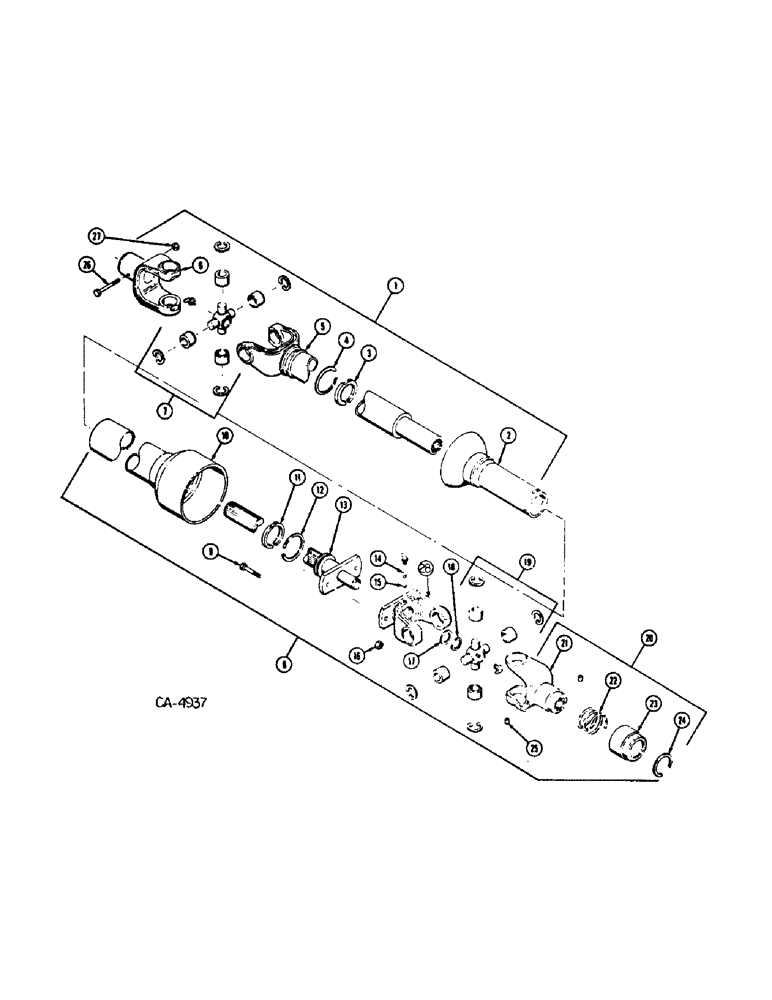

Запчасти Case IH 750 (E-14) - P.T.O. ASSEMBLY

1

63968C91

JOINT ASSY, implement end

1шт.

2

63969C1

TUBE ASSY, male guard

1шт.

3

63970C1

BEARING, nylon

1шт.

4

63971C1

RETAINER, bearing

1шт.

5

63972C1

YOKE & TUBE

1шт.

6

63973C1

YOKE

1шт.

7

63974C1

KIT

cross repair

1шт.

8

63975C91

JOINT ASSY, tractor end

1шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C-Z hex-hd mach

1шт.

10

63976C1

TUBE ASSY, female guard

1шт.

11

63977C1

BEARING, nylon

1шт.

12

597559R1

RETAINER

bearing

1шт.

13

63979C1

SHAFT W/SHEAR FLANGE

1шт.

14

63980C1

SPRING

1шт.

15

29784D

BALL,5/16" Dia

5/16 stl

1шт.

16

231-1435

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 prev-torque hex. lock

1шт.

17

63981C1

WASHER

1шт.

18

63982C1

RING, retaining

1шт.

19

63974C1

KIT

cross repair

1шт.

20

63983C91

YOKE ASSY, side lock

1шт.

21

63984C1

YOKE, slide lock

1шт.

22

63985C1

SPRING

1шт.

23

63986C1

COLLAR

1шт.

24

63987C1

RING, retaining

1шт.

25

63988C1

PAWL

1шт.

26

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

SCREW, 5/16-18 x 3-1/2 hex-hd cap

1шт.

27

231-1435

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 prev-torque ext lock

1шт.

28

63989C1

YOKE, shear

1шт.
