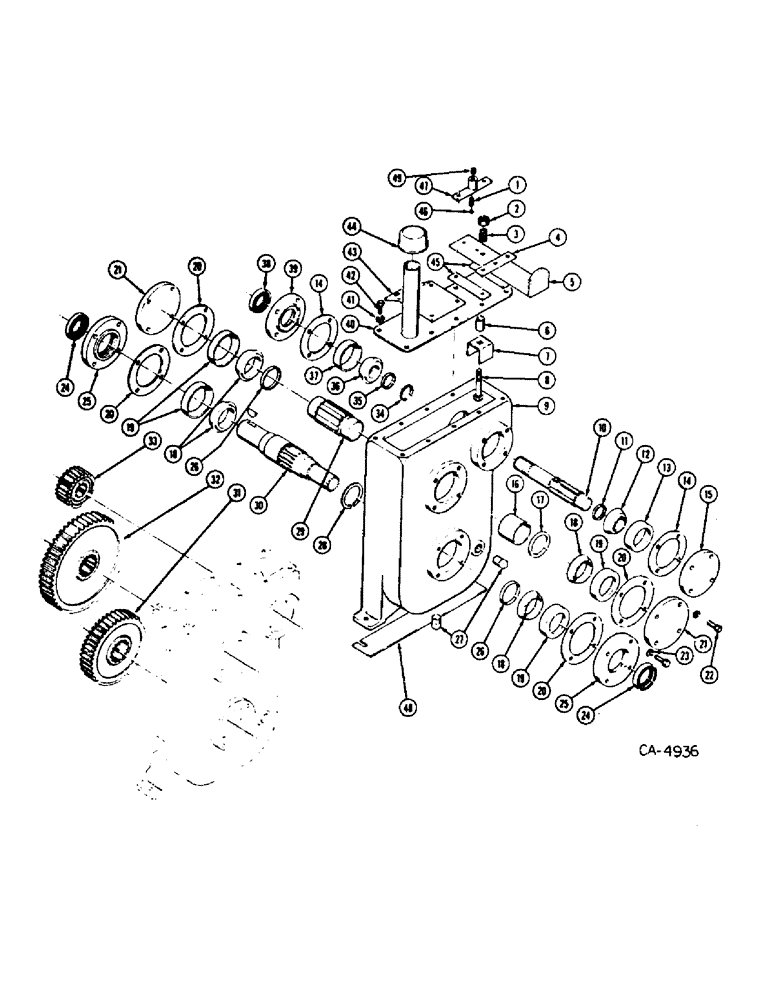

Запчасти Case IH 750 (E-12) - GEAR BOX

1

64320C1

SPRING, compression

1шт.

2

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon

1шт.

3

64375C1

SPRING

1шт.

4

63935C1

BASE

1шт.

5

63936C1

PLATE, shifter

1шт.

6

391553R1

SPACER,1/2" Pipe x 7/8"

pipe

1шт.

7

63937C1

U-CLAMP, shift

1шт.

8

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 crg

1шт.

9

63938C1

BOX, spur gear

1шт.

10

63939C1

SHAFT, output

1шт.

11

63940C1

SPACER

1шт.

12

64364C91

BEARING, cone

1шт.

13

64365C1

BEARING, cup

1шт.

14

63941C1

SHIM, .005

4шт.

14

63942C1

SHIM, .0075

1шт.

14

64943C1

BRACKET

SHIM, .020

1шт.

15

63944C1

CAP, bearing

1шт.

16

63945C5

DECAL

SPACER

1шт.

17

63946C1

SPACER

1шт.

18

G15215

ROLLER BEARING

BEARING, cone

4шт.

19

619387R1

BEARING CUP

BEARING, cup

4шт.

20

63949C1

SHIM, .020

1шт.

20

63948C1

SHIM, .0075

1шт.

20

63947C1

SHIM, .005

2шт.

21

63950C1

CAP, bearing

2шт.

22

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

23

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

24

254662C91

SEAL, oil

2шт.

25

63951C1

CAP, bearing

2шт.

26

63952C1

SPACER

2шт.

27

444589

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 pipe

2шт.

28

567470R1

SNAP RING,2.25", Int, #225

Ring, Snap, 2.25", Int, #225

1шт.

29

63953C1

SHAFT

1шт.

30

63954C1

SHAFT, input

1шт.

31

63955C1

GEAR, spur, 40T

1шт.

32

63956C1

GEAR, spur, 54T

1шт.

33

63957C1

GEAR, spur, 20T

1шт.

34

25176R1

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

35

63958C1

SPACER

1шт.

36

201380C91

BEARING ASSY,1.5" ID x 2.6875" OD x 0.625"

BEARING, cone

1шт.

37

201381C1

BEARING ASSY,1.5" ID x 2.687" OD x 0.625"

BEARING, cup

1шт.

38

406651R91

SEAL ASSY.,36.22mm ID x 57.3mm OD x 9.53mm Thk

SEAL, oil

1шт.

39

63959C1

CAP, bearing

1шт.

40

63960C91

COVER, weld assy

1шт.

41

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

42

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap

2шт.

43

63961C1

PLATE, brace

1шт.

44

267112R91

CAP

breather

1шт.

45

62766C1

SPACER

2шт.

46

29784D

BALL,5/16" Dia

5/16 steel

1шт.

47

63962C1

LOCK

1шт.

48

63963C1

SPACER, 1/16

1шт.

48

63964C1

SPACER, 3/16

1шт.

48

63965C1

SPACER, 1/32

1шт.

49

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc cp-pt

2шт.
