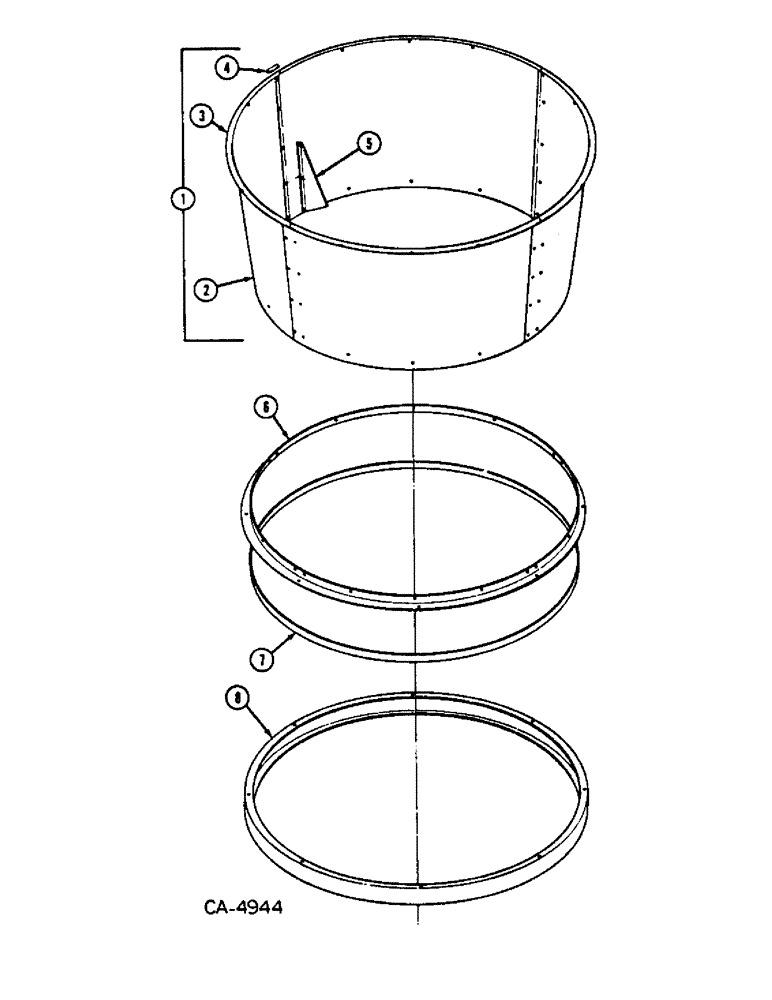

Запчасти Case IH 725 (D-09) - TUBE SIDES & ATTACHING PARTS

1

64004C1

SIDE ASSY, tube

4шт.

2

NOT SERVICED SEPARATELY, order tub side assy 64004C1

1шт.

3

NOT SERVICED SEPARATELY, order tube side assy 64004C1

1шт.

4

64009C1

SPACER, connector

1шт.

5

64005C1

BAFFLE

2шт.

6

640096C1

RETAINER, bottom tub, serial no. 0800001U000106 and below

1шт.

6

72787C1

RING, tube drive, serial no. 0800005U000101 and above

1шт.

7

64007C1

STRIP, tub

1шт.

8

64008C1

RETAINER, tub drive, serial no. 0800001U000106 and below

1шт.

72788C1

PAINT, qt can traction

1шт.
