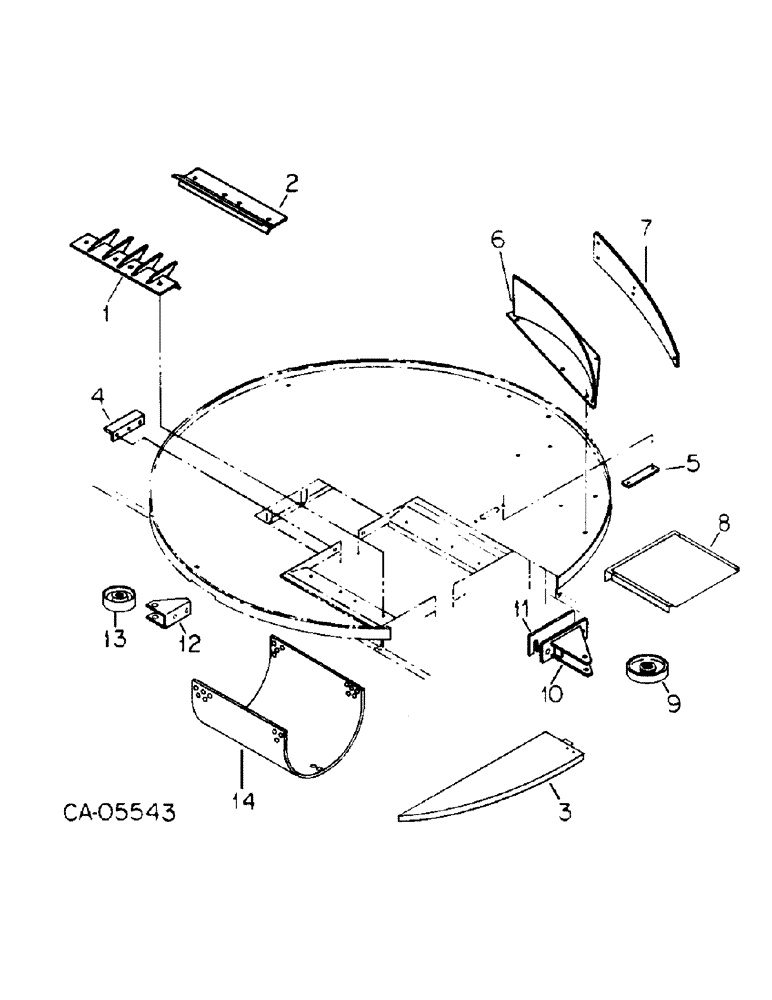

Запчасти Case IH 725 (D-08) - TUB FLOOR & ATTACHING PARTS, SERIAL NO. 0800005U000101 & ABOVE

1

64010C1

GRATE, rotocomb

1шт.

2

64011C1

SUPPORT, hold down

1шт.

3

72733C1

SECTION, floor weldment

1шт.

4

72738C1

ANGLE

1шт.

5

72739C1

BAR, hole, cover

1шт.

6

72734C1

GUIDE

1шт.

7

72735C1

SUPPORT, fin, extendor

1шт.

8

72736C1

DOOR, floor

1шт.

9

64015C91

ROLLER ASSY, consists of

1шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R91

BEARING

2шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

2шт.

64333C1

SPACER, tube

2шт.

64016C1

ROLLER

1шт.

10

72737C1

SUPPORT, roller

1шт.

11

72740C1

BAR, back-up

3шт.

12

64032C1

CHANNEL, roller

1шт.

13

63922C91

ROLLER ASSY, consists of

5шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R91

BEARING

ASSY

2шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

2шт.

64333C1

SPACER, tube

1шт.

63923C1

ROLLER

1шт.

14

64018C1

SCREEN, hammermill 1/4

1шт.

14

64019C1

SCREEN, hammermill 5/16

1шт.

14

64020C1

SCREEN, hammermill 3/8

1шт.

14

64021C1

SCREEN, hammermill 7/16

1шт.

14

64022C1

SCREEN, hammermill 1/2

1шт.

14

64023C1

SCREEN, hammermill 5/8

1шт.

14

64024C1

SCREEN, hammermill 3/4

1шт.

14

64025C1

SCREEN, hammermill 1

1шт.

14

64026C1

SCREEN, hammermill 2

1шт.

14

64027C1

SCREEN, hammermill 3

1шт.

14

64028C1

SCREEN, hammermill 1-1/2

1шт.

14

64029C1

SCREEN, hammermill 2-1/2

1шт.

14

64030C1

SCREEN, hammermill 4

1шт.

14

64031C1

SCREEN, hammermill 1-1/4

1шт.

14

64093C2

SCREEN, rectangular 1-1/2 x 4-3/4

1шт.

14

64094C2

SCREEN, rectangular 2 x 4-3/4

1шт.

14

64095C2

SCREEN, rectangular 3 x 4-3/4

1шт.

14

64096C1

SCREEN, bar

1шт.
