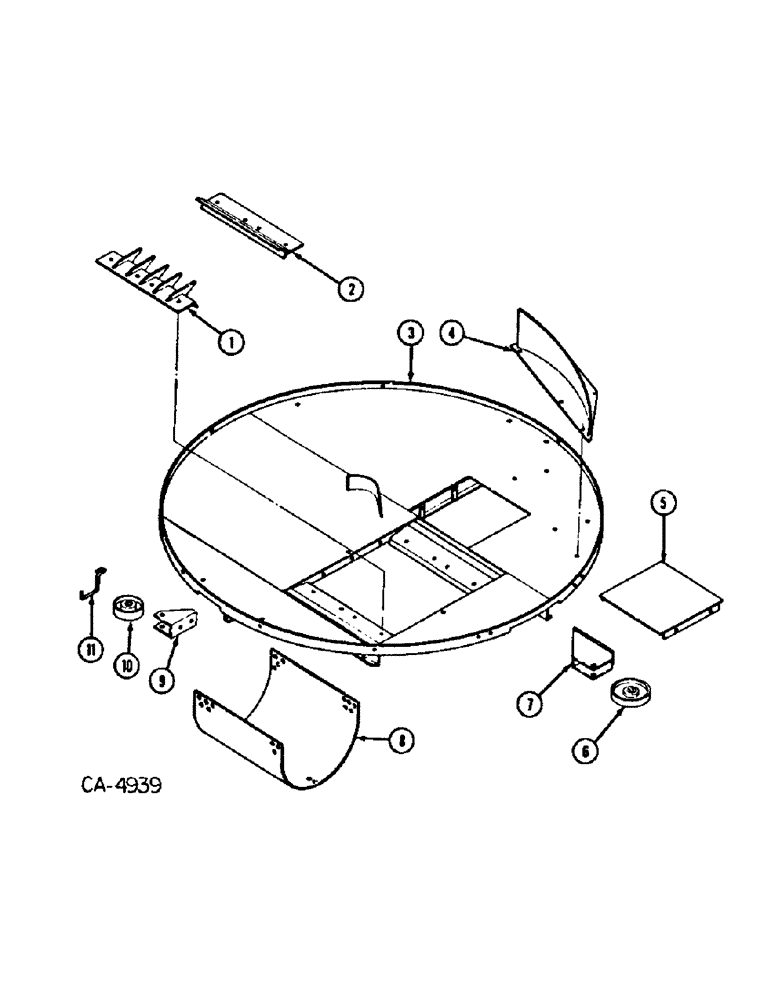

Запчасти Case IH 725 (D-07) - TUB FLOOR ATTACHING PARTS, SERIAL NO. 0800001U000106 & BELOW

1

64010C1

GRATE, rotorcomb

1шт.

2

64011C1

SUPPORT, hold down

1шт.

3

64012C1

BASE, tube

1шт.

4

64013C1

GUIDE

1шт.

5

64014C1

DOOR, floor

1шт.

6

64015C91

ROLLER ASSY

1шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

2шт.

64016C1

ROLLER

1шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R91

BEARING

2шт.

64333C1

SPACER, tube

1шт.

7

64017C1

SUPPORT, roller

1шт.

8

64018C1

SCREEN, hammermill 1/4

1шт.

8

64019C1

SCREEN, hammermill 5/16

1шт.

8

64020C1

SCREEN, hammermill 3/8

1шт.

8

64021C1

SCREEN, hammermill 7/16

1шт.

8

64022C1

SCREEN, hammermill 1/2

1шт.

8

64023C1

SCREEN, hammermill 5/8

1шт.

8

64024C1

SCREEN, hammermill 3/4

1шт.

8

64025C1

SCREEN, hammermill 1

1шт.

8

64026C1

SCREEN, hammermill 2

1шт.

8

64027C1

SCREEN, hammermill 3

1шт.

8

64028C1

SCREEN, hammermill 1-1/2

1шт.

8

64029C1

SCREEN, hammermill 2-1/2

1шт.

8

64030C1

SCREEN, hammermill 4

1шт.

8

64031C1

SCREEN, hammermill 1-1/4

1шт.

8

64093C2

SCREEN, rectangular 1-1/2 x 4-3/4

1шт.

8

64094C2

SCREEN, rectangular 2 x 4-3/4

1шт.

8

64095C2

SCREEN, rectangular 3 x 4-3/4

1шт.

8

64096C1

SCREEN, bar

1шт.

9

64032C1

CHANNEL, roller

1шт.

10

63922C91

ROLLER ASSY

5шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

85615691

BEARING

1шт.

64333C1

SPACER, tube

1шт.

11

64033C1

GUARD, finger

5шт.
