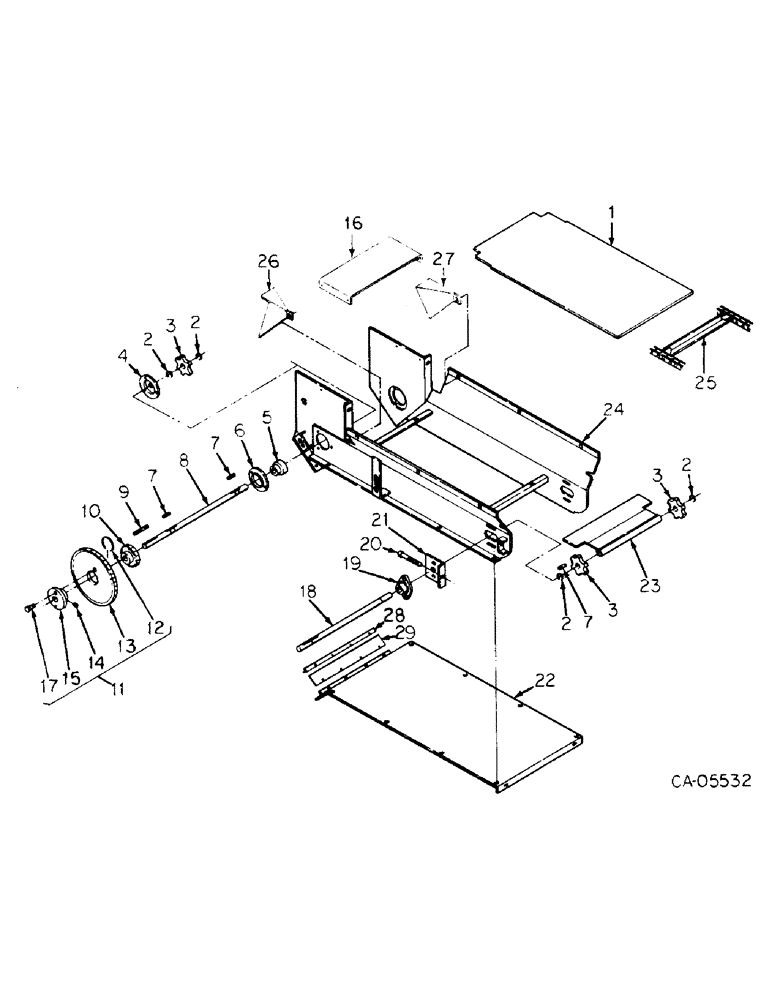

Запчасти Case IH 725 (D-05) - CONVEYOR MAIN FRAME

72765C91

CONVEYOR ASSY

1шт.

1

72764C1

BOARD, floor

1шт.

2

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

3

72777C1

SPROCKET, drive

4шт.

4

72778C1

FLANGETTE, bearing

1шт.

5

470743R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

2шт.

557995R11

COLLAR

locking

2шт.

6

470746R1

FLANGE

bearing

2шт.

7

27625R1

KEY,1/4" Sq x 5/8", Par

1/4 x 1/4 sq. parallel

3шт.

8

72779C1

SHAFT, drive

1шт.

9

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 1/4 sq parallel

1шт.

10

72776C1

SPROCKET, 18T

1шт.

11

72773C91

SUPPORT ASSY, shear hub

1шт.

12

644771R1

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

1шт.

13

72775C1

SPROCKET, 54T

1шт.

14

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 zn cup-pt

2шт.

15

72774C1

HUB

1шт.

16

72781C1

SUPPORT

1шт.

17

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

72763C1

SHAFT

1шт.

19

64326C91

BEARING, ball

2шт.

20

623056R1

BOLT, adjustable

2шт.

21

64060C1

SUPPORT, bearing, plate

2шт.

22

72780C1

COVER, bottom

1шт.

23

72762C1

GUIDE, slat

1шт.

24

72772C1

CONVEYOR, weldment

1шт.

25

72766C91

CHAIN & SLAT ASSY, for components see chain and slat assy listing

1шт.

26

72782C1

DEFLECTOR

1шт.

27

72783C1

DEFLECTOR

1шт.

28

72784C1

ANGLE

1шт.

29

72785C1

STRIP, conveyor, seal

1шт.
