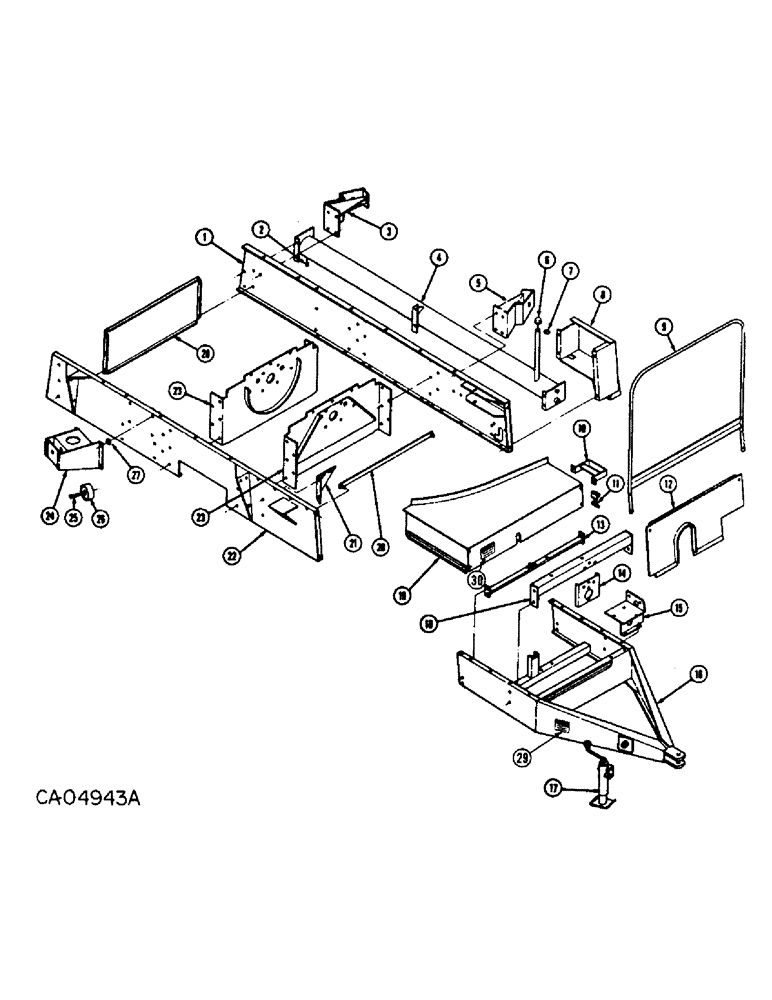

Запчасти Case IH 725 (D-02) - FRAME, SERIAL NO. 0800001U000106 AND BELOW

1

63900C1

FRAME, LH main

1шт.

2

444589

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-hd pipe

1шт.

3

63901C1

SUPPORT, roller

1шт.

4

63902C91

TANK, weld

1шт.

5

63903C1

SUPPORT, roller

1шт.

6

267112R91

CAP

breather

1шт.

7

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

Switch Mounting

1шт.

8

63905C1

COVER, tank

1шт.

9

63906C1

RAIL, hand

1шт.

10

63907C1

STEP

1шт.

11

62764C1

LATCH

1шт.

12

63909C1

SHIELD, weld

1шт.

13

63910C1

SUPPORT, channel

1шт.

14

63911C1

CHANNEL, mounting

1шт.

15

63912C1

SUPPORT, valve

1шт.

16

63913C1

HITCH, tongue

1шт.

17

64360C1

JACK

1шт.

18

63914C1

SUPPORT, box

1шт.

19

63915C1

COVER, weld

1шт.

20

63916C1

BAR

1шт.

21

63917C1

BRACKET, governor mounting

1шт.

22

63918C1

FRAME, RH main

1шт.

23

63919C1

SUPPORT, weld

2шт.

24

63920C1

SUPPORT, roller

1шт.

25

63921C1

BOLT, roller

3шт.

26

63922C91

ROLLER ASSY

5шт.

513047R1

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

2шт.

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING, ball

2шт.

64333C1

SPACER, tube

1шт.

63923C1

ROLLER

1шт.

27

261924C1

WASHER

12шт.

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

locking

1шт.

28

63924C1

SUPPORT, rear, panel

1шт.

29

73841C1

PRODUCT GRAPHIC, caution

1шт.

30

73842C1

PRODUCT GRAPHIC, caution

1шт.
