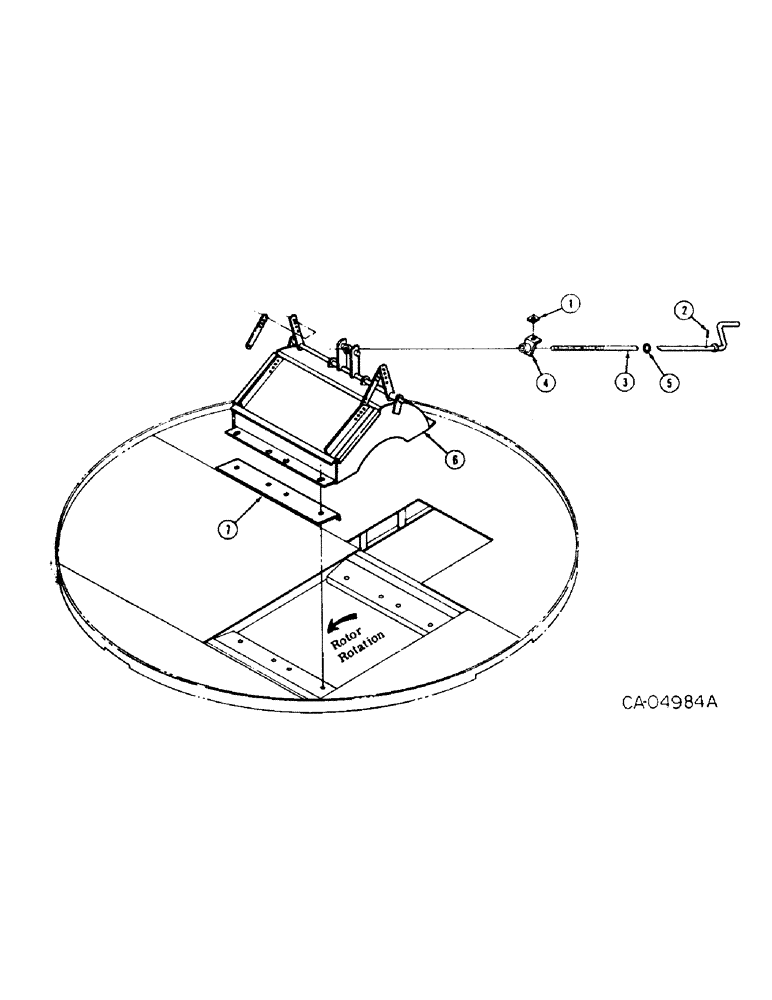

Запчасти Case IH 725 (D-31) - GRAIN ATTACHMENT

1

NOT SERVICED SEPARATELY

1шт.

2

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

3

64115C1

HANDLE, crank, serial no. 0800001U000106 and below

1шт.

3

72800C1

HANDLE, crank, serial no. 0800005U000101 and above

1шт.

4

64116C1

BRACKET, handle, serial no. 0800001U000106 and below

1шт.

4

72801C1

BRACKET, handle, serial no. 0800005U000101 and above

1шт.

5

21905R1

WASHER

.656 x 1.750 x .224 zn

1шт.

6

64113C91

HOPPER ASSY, grain

1шт.

64114C1

BAR, hopper bracket

2шт.

7

64118C1

SCREEN, hold down

1шт.
