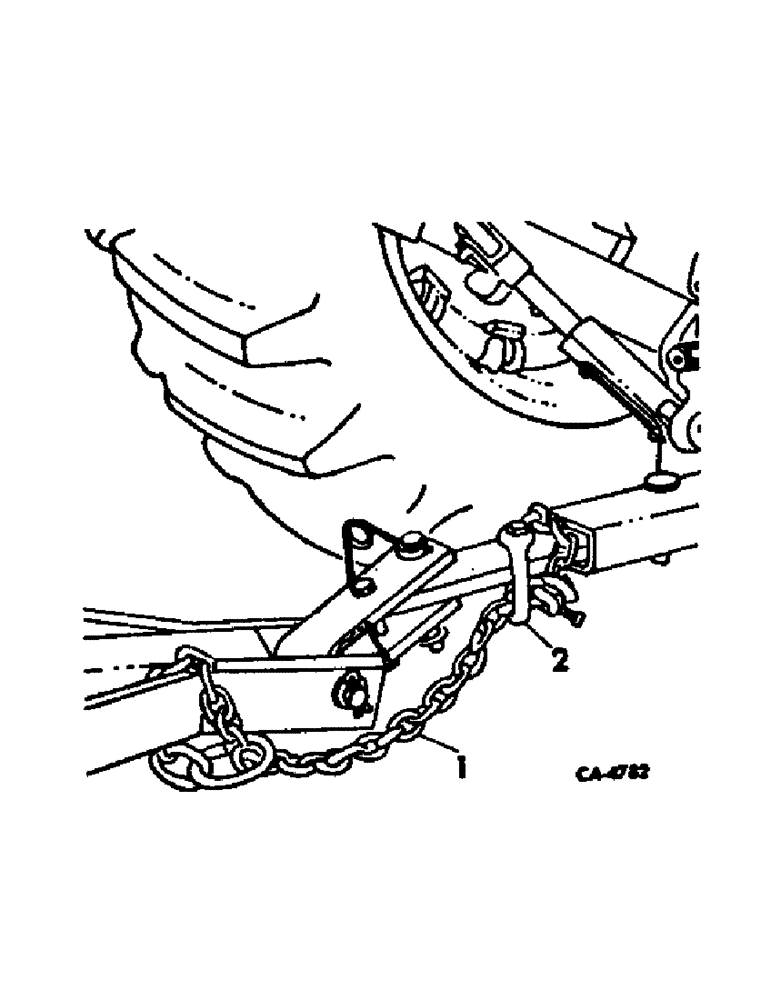

Запчасти Case IH 725 (D-30) - SAFETY CHAIN, PRODUCT GRAPHICS

1

100682C2

CHAIN (AG)

CHAIN, safety

1шт.

2

148558C1

CLEVIS

replaces S9173A

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26512R1

WASHER

.781 x 2.0 x .164 znd

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

1шт.

61913C92

PACKAGE

chain hardware, consists of clevis and attaching hardware

1шт.

63867C2

PACKAGE, product graphics, consists of

1шт.

2753522R1

DECAL

1000 RPM (NSS)

1шт.

56630C1

PRODUCT GRAPHIC

CAUTION

1шт.

202913C1

PRODUCT GRAPHIC

HITCH INFORMATION (NSS)

1шт.

63870C1

HYDRAULIC FLUID LEVEL (NSS)

1шт.

63871C1

TUB ROTATION CONTROL (NSS)

1шт.

63872C1

IMPORTANT (NSS)

1шт.

64374C1

TUB SPEED CONTROL (NSS)

1шт.

63874C1

DIRECTION OF ROTATION (NSS)

2шт.

61908C1

DECAL

CAUTION

1шт.

63875C1

DANGER

1шт.

63876C1

CAUTION

1шт.

175311C1

REFLECTOR

(NSS)

2шт.

537999R1

DECAL

HY-TRAN WARRANTY (NSS)

1шт.

1000622R7

DECAL

DANGER

1шт.

56628C3

DECAL

CAUTION INSTRUCTIONS

1шт.

64553C2

PRODUCT GRAPHIC

CAUTION, P.T.O.

1шт.

73841C1

CAUTION

1шт.

73842C1

CAUTION

1шт.

117092C1

MODEL DESIGNATION

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58x7.09 (NSS), (2) IH trademark 7.68x8.27 (NSS), (2) IH trademark 10.24x11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66x3.94 (NSS), (2) IH trademark 4.39x4.72 (NSS), (2) IH trademark 5.48x5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46x1.57 (NSS), (2) IH trademark 2.19x2.36 (NSS), (2) IH trademark 2.93x3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56x.56 (NSS), (2) International 14.06x.94 (NSS), (2) International 23.12x1.50 (NSS), (2) International 35.12x2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78x2.45 (NSS), (2) model designation 14.08x4.50 (NSS), (2) model designation 20.04x7.57 (NSS), (2) model designation 15.20x7.56 (NSS)

1шт.
