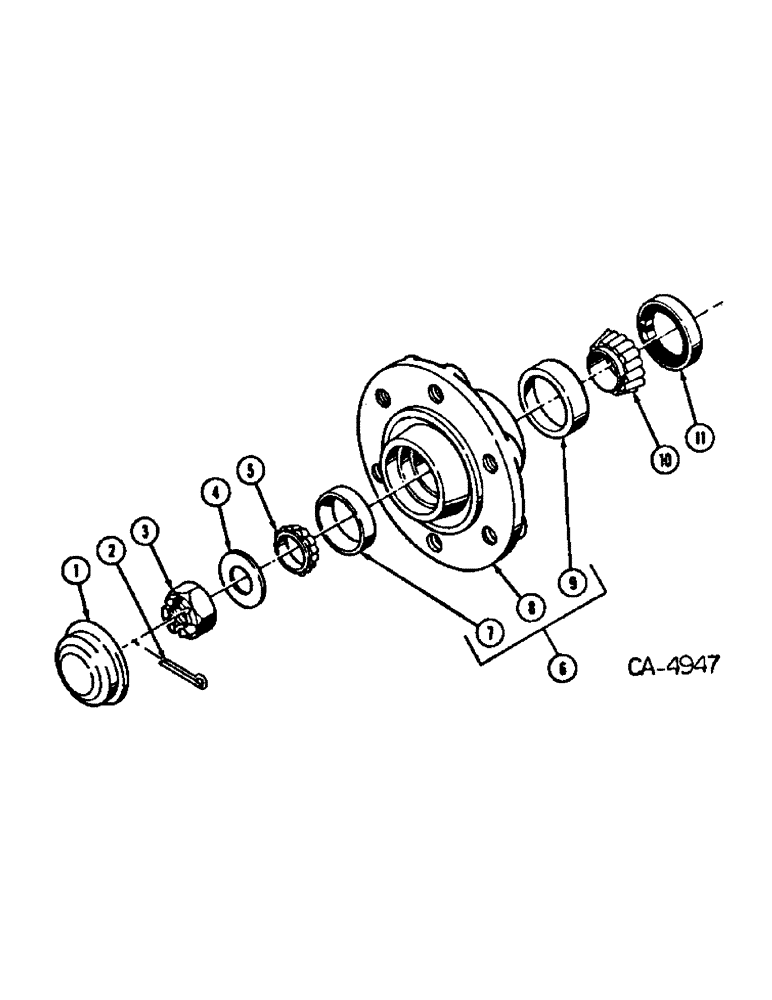

Запчасти Case IH 725 (D-20) - HUB ASSEMBLY

1

518842R1

CAP

2шт.

2

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

3

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

2шт.

4

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

.812 x 1.469 x .108 znd

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, cone

1шт.

6

64318C91

HUB

ASSY

1шт.

7

651817R1

BEARING CUP

BEARING, cup

1шт.

8

HUB, not serviced separately, order hub assy

1шт.

9

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, cone

1шт.

11

614410R91

SEAL

grease

2шт.
