Запчасти Case IH 725 (D-13) - ROTOR DRIVE AND CONNECTIONS

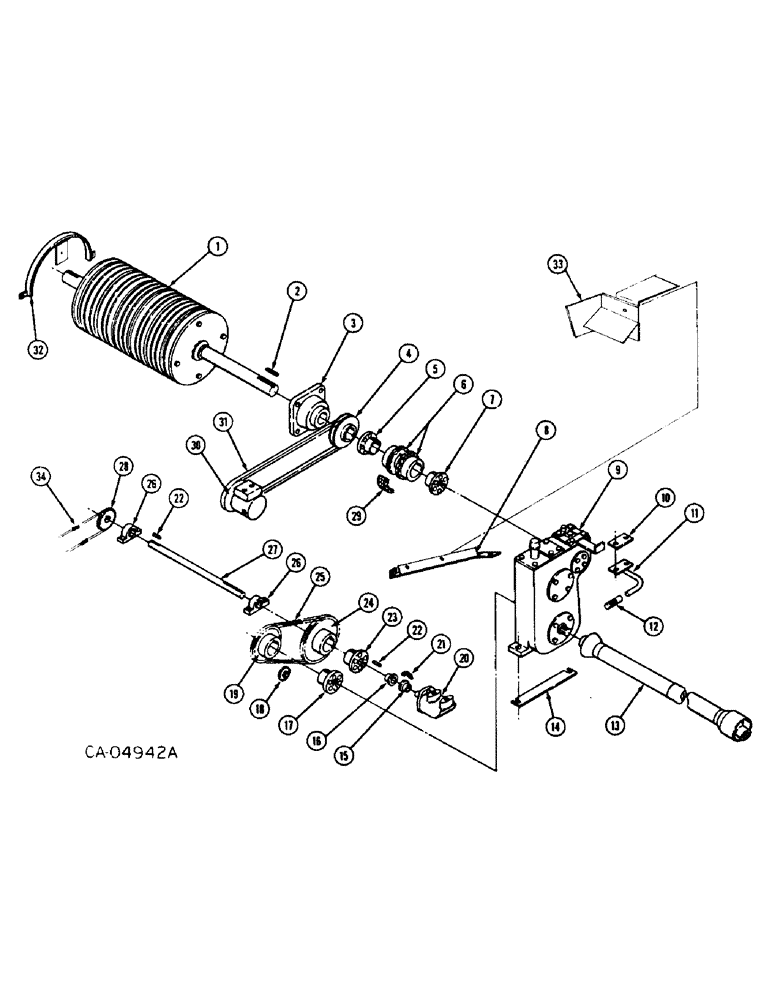

Схема запчастей Case IH 725 - (D-13) - ROTOR DRIVE AND CONNECTIONS

Артикул

Название

Примечание

Количество

1

63926C1

ROTOR ASSY, see rotor

1шт.

2

12759

KEY, 5/8 x 2-1/2 sq parallel 5/8" Sq x 2 1/2", Par

1шт.

3

63928C91

BEARING, flange

2шт.

4

63929C1

PULLEY, sheave

1шт.

5

63931C1

BEARING

1шт.

6

63930C1

COUPLING, half

2шт.

7

63932C1

HUB

1шт.

8

64090C1

SUPPORT, box, brace, serial no. 0800001U000106 and below

1шт.

8

72725C1

SUPPORT, box, brace, serial no. 0800005U000101 and above

1шт.

9

63934C91

BOX ASSY, gear

1шт.

10

63966C1

BAR, plate, serial no. 0800001U000106 and below

1шт.

11

63967C1

LEVER, shift, serial no. 0800001U000106 and below

1шт.

11

72727C1

ROD, shift, serial no. 0800005U000101 and above

1шт.

12

549657R1

GRIP, hand

1шт.

13

POWER TAKE OFF, see power take off

1шт.

14

63963C1

SPACER

1шт.

15

63991C1

COUPLING

1шт.

16

63992C1

COUPLING

1шт.

17

63994C1

BUSHING

1шт.

18

631905R91

SPROCKET

idler

1шт.

19

63995C1

SPROCKET, serial no. 0800001U000106 and below

1шт.

19

72728C1

SPROCKET, serial no. 0800005U000101 and above

1шт.

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 Woodruff, serial no. 0800005U000101 and above

1шт.

20

63990C91

PUMP, hydraulic, see hydraulic pump

1шт.

21

CHAIN, use 15 links from a 10 ft roll marked, 1792D & 1 conn link, 1378D

1шт.

22

Q53

KEY,1/4" Sq x 1", Par

3шт.

23

63993C1

BUSHING, serial no. 0800001U000106 and below

1шт.

24

63996C1

SPROCKET, serial no. 0800001U000106 and below

1шт.

24

72729C1

SPROCKET, serial no. 0800005U000101 and above

1шт.

25

CHAIN, drive, use 76 links from a 100 ft roll marked, 1740D & 1 conn link, 1310D

1шт.

26

64362C91

BLOCK, bearing

2шт.

27

63997C1

SHAFT, jack

1шт.

28

55892C1

SPROCKET

1шт.

29

CHAIN, use 14 links from a 10 ft roll marked, 21350R1 and 1 conn link, 1394D

1шт.

30

63933C91

GOVERNOR ASSY

1шт.

31

62817C1

V-BELT

1шт.

32

63927C1

RING, anti-wrap, serial no. 0800001U000106 and below

2шт.

32

72730C1

SUPPORT, anti-wrap ring, serial no. 0800005U000101 and above

1шт.

33

72726C1

SHIELD, governor drive, serial no. 0800005U000101 and above

1шт.

34

CHAIN, no. 50, use 114 links from a 100 ft. roll marked 1740D & 1 conn link 1310D

1шт.

Выбрано товаров: 40
