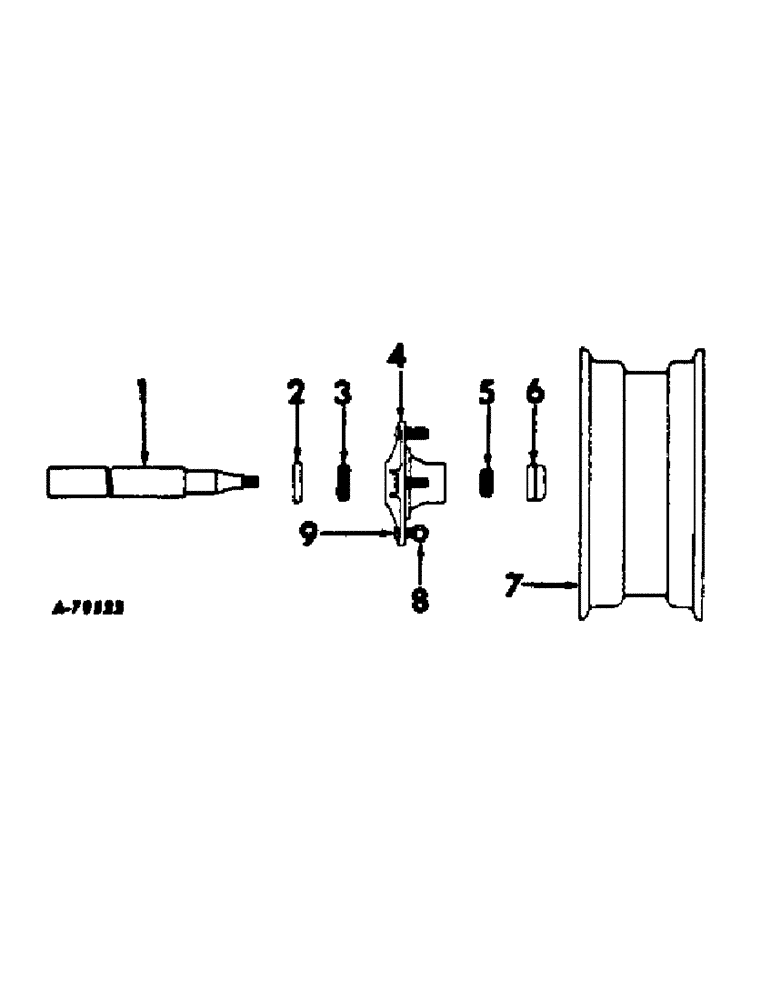

Запчасти Case IH 105 (A-04) - WHEELS AND HUBS, 85 AND 105 GRINDER MIXER W/SERIAL NOS. 746 AND BELOW

1

475866R1

SPINDLE, 23-1/2 in.

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

446238

BANJO BOLT

5/8 x 1-3/8 x 12 ga

2шт.

2

475867R1

SEAL, hub

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, wheel, inside

2шт.

4

653651R91

HUB ASSY, wheel

2шт.

5

475869R91

BEARING, wheel, outside

2шт.

6

564773R1

CAP

hub

2шт.

7

475870R91

WHEEL, 15 x 6 DC

2шт.

8

453770R1

WHEEL NUT

special hex

10шт.

9

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, special hub

10шт.
